symbol_treatment.gif 4. Methods for treatment of pulp and paper production effluents

Biological treatment, typical applying the activated sludge system, is the standard method for the purification of pulp and paper mill effluents. In case of severe effluent limits, regarding organic pollution, additional chemical treatment may become necessary.
For new units planning the production and developing a treatment concept takes place at the same time so that in modern pulp production complexes the philosophy of "preventing before treating" is mostly realised.

4.1 Analysis of the different effluent streams
The multi-stage process from wood to paper produces several effluent streams with different grades of pollution (see chapter 3.1 production process). This paper deals with lab-scale investigations to improve the "end of pipe" treatment in Sari. Therefore, analysing the different wastewater streams is inevitable to reach the primary objective.
In order to select a both economical and efficient treatment, sequence assessment of the individual substreams is necessary.
It has been shown that more than half of the lignin derived pollutants in pulp mill effluents and resin acids are likely to be non-biodegradable or even harmful to aquatic life. (Römpp, 1992).

4.1.1 Identification
According to the different production stages, the wastewater flow can be divided up into the following main streams (see Figure 3 and Figure 4).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 3 - Main-streams
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 4 - Critical Sub-streams

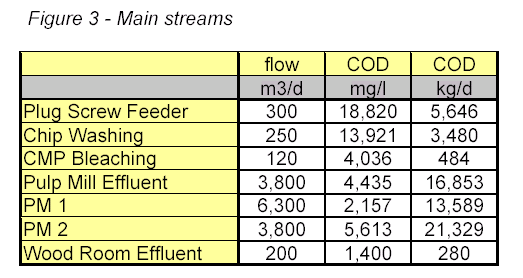

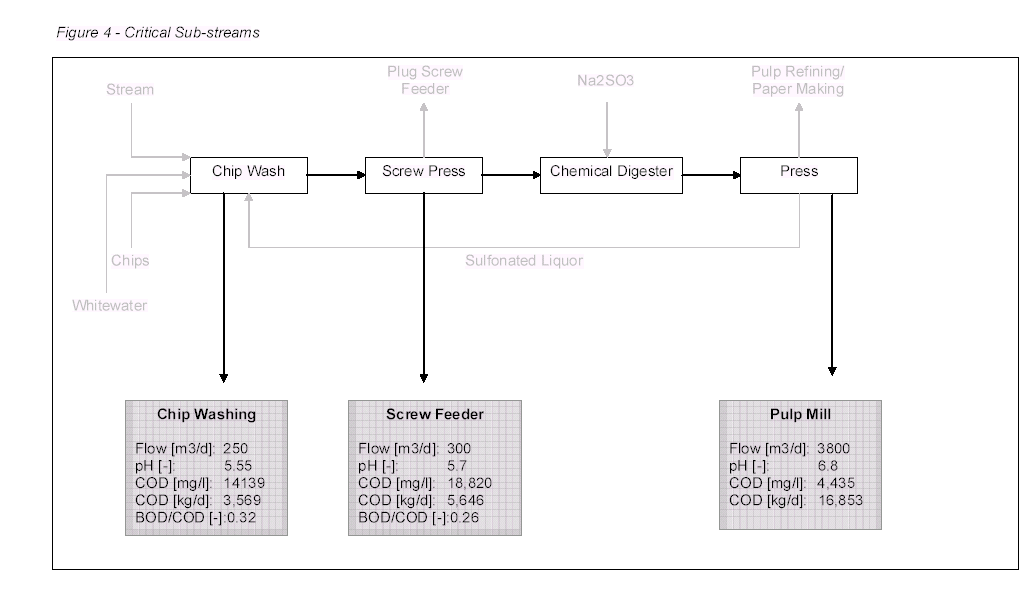

The water from the Wood Room, Plug Screw Feeder, Chip Washing, CMP Bleaching and the pulp Machine 2 (PM2) effluent emerges during the pulp production, whereas the wastewater streams PM1 and PM2 originate from the paper production.
The Wood Room Effluent with a COD load of 280 kg/d can be considered as a relatively uncritical sub-stream. Furthermore, the COD concentration in the effluent of PM1 is quite low (2,157 mg/l). The Bleaching wastewater stream can be neglected as well because of its low flow.
Hence, the COD load released by the pulp mill averages 27 % of the total load. The highest COD concentrations are to and in the effluents of the Plug Screw Feeder and Chip Washing (concentration range: 11,000 to 20,000 mg COD/l). The biggest part of the total COD load, about 21,500 kg COD/d, is due to the PM2 effluents.
Separate pre-treatment of the Plug Screw Feeder, Chip Washing and the PM2 effluents appeared to be the most economised approach to achieve the overall COD effluent limit of 100 mg/l.

4.1.2 Assessment of treatment efficiencies
In order to assess the impact of separate pre-treatment of the three selected substreams (Plug Screw Feeder, Chip Washing and the PM2 effluents) on the overall efficiency of wastewater treatment, balancing calculations were carried out.
Based on previous measurements of the Canadian company in Sari, a comparison of the COD load with and without separate treatment should give a first indication which percentage of the sub-stream COD has to be eliminated in order to reach the requested limits. As available data from the site show major flow and load vary with the time, the assessment had to be based on reasonable assumptions (see Figure 5).

As the production process itself or the sort of wood utilised has a big impact on the effluent composition, theses factors must be taken into consideration as well. Generally, using softwood, for instance poplar, results in lower COD loads. With hardwood like oak the COD concentration almost doubles.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 5 - Comparison of PM2 effluents

According to the performance data available from the Sari treatment plant typically over 98 % of the BOD load is eliminated but only 87 % of the COD load.

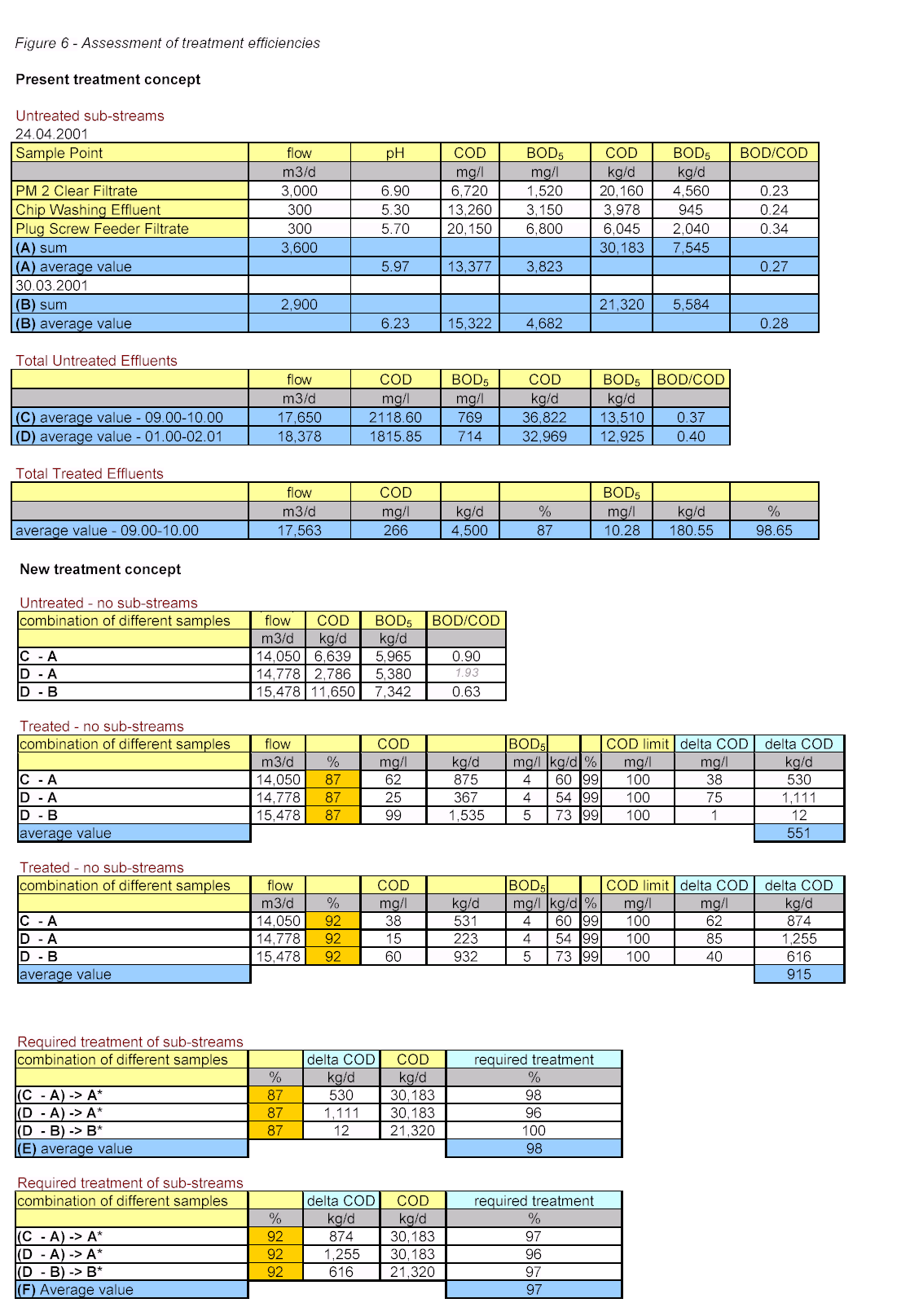

In Figure 6 a "simulation" of sub-stream treatment is outlined based on different measurements.
A subtraction of the sub-stream COD loads (A, B) from the mainstream (C, D) and an assumed treatment of 87 % to 92 % of the residual stream give a potential goal for the sub-stream treatment (A*, B*). The "simulation" shows that it will be very difficult to reach the requested value by separating only these sub-streams. In the sub-streams the COD elimination would have to reach a value between 98 % (E) and 97 % (F). But it should not be a problem to add an additional stream as a part of the pulp mill effluent if the authority asks for even stricter effluent values.

In the selected sub-streams the portion of non-biodegradable substances was higher than in the other wastewater streams, as indicated by the respective BOD/COD ratios.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 6 - Assessmentof treatment efficiencies


4.1.3 Chemical properties of the pulping effluent
The main compounds in the sulfite pulping effluents are the ligninsulfonates as listed below in Figure 7. The specific COD load from hard wood is 2.5 times higher than the one from softwood. Reason for this is the different composition of hemicellulose and lignin.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 7 - Main compounds

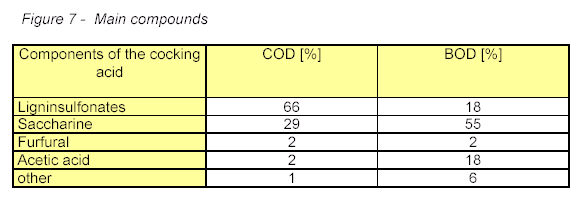

Generally, the main compounds in pulp and paper mill effluents are
o ligninsulfonates which are non-biodegradable,
o organic acids and saccharine which can be degraded in an aerobic process.

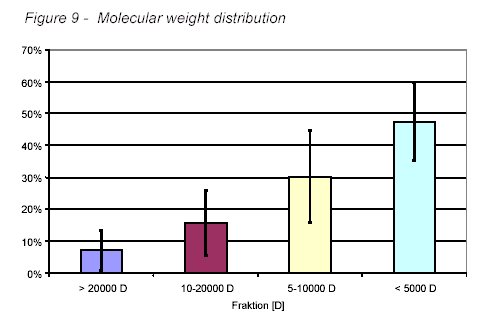

The single compounds of pulp and paper effluents were analysed via ultrafiltration and aluminium oxide (Al2O3) adsorption by the Papiertechnische Stiftung (PTS). Figure 8 points out the volume distribution of the main ingredients. In Figure 9 the molecular weight distribution is shown. From this it can be seen that the ligninsulfonates and lignin itself have a molecular size of 0.01 - 0.1 µm and a molecular weight of 20,000 - 100,000 D on average. In general, the total amount of these compounds equals 30 % (Demel, 2000).
A further identification showed that about 50 % of the total content belongs to the group of lignin and humic acids with a molecular weight less than 5000 D and a size of 0.01 µm, respectively.
The presence of these substances can be considered as the main reason for the poor biodegradability of pulp and paper mill effluents.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 8 - Molecular size distribution
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 9 - Molecular weight distribution

Lignin

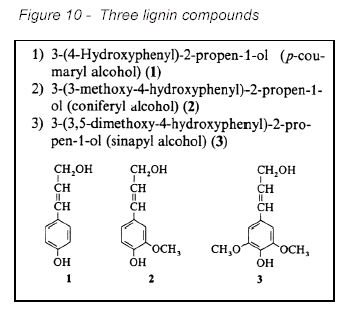

The word lignin is derived from the Latin word lignum meaning wood. Lignin is an natural polymer made up of phenylpropane units (Figure 10). Lignin performs multiple functions that are essential to the life of the plant. By decreasing the permeation of water across the cell walls in the conduction xylem tissues, lignin plays an important role in the internal transport of water, nutrients and metabolites. It imparts rigidity to the cell walls and acts as binder between the wood ingredients. It is creating a composition material that is strongly resistant to impact, compression and bending. Lignified tissues effectively resist attack by microorganisms. Depending on the sort of wood lignin has a different composition. Basically lignin is formed in a woody plant by dehydrogen polymerization of three phenylpropanoid monomers

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 10 - Three lignin compounds

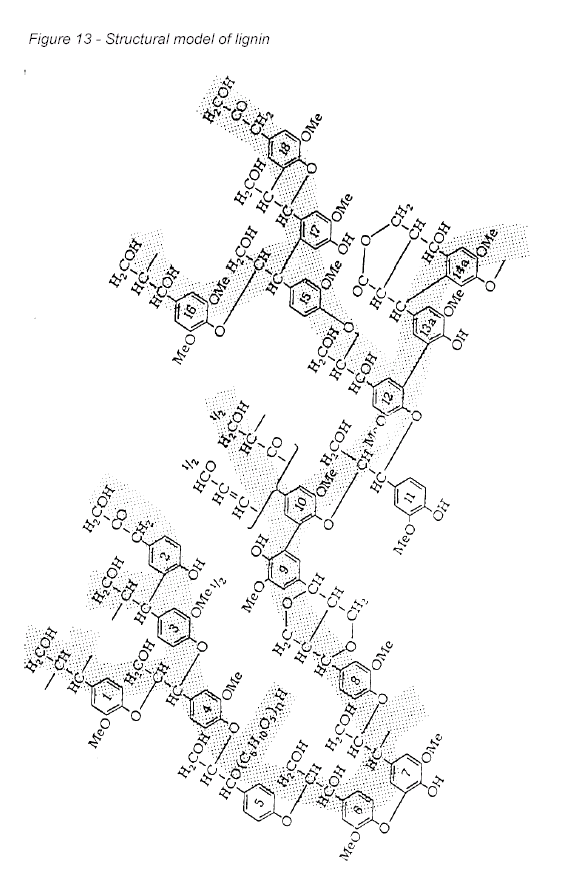

Figure 13 shows the structural model of lignin with the polymeric strings hinted through the raster.
The physical properties like the molecular mass are described above. In wood lignin behaves as an insoluble, three-dimensional network. Lignin exhibits a glass transition temperature of about 160 °C.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 13 - Structural model of lignin

The chemical properties depending on the pulping process are:
o Alkaline Pulping (Kraft Pulping)
o Sulfite Pulping
The Sari pulp production uses the Sulfite Pulping process for delignification.

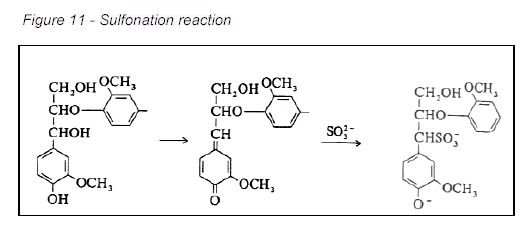

Under Sulfite Pulping conditions, lignin is sulfonated and rendered water-soluble. A major sulfonation reaction is demonstrated in Figure 11.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 11 - Sulfonation reaction

Ligninsulfonates are heterogeneous in terms of their molecular polydispersity and structure. They are soluble in water over the entire pH range, but insoluble in ethanol, acetone and other common organic solvents.
For everybody visible is the yellowing reaction of lignin. It discolours in the presence of alkali and oxygen (air), or when exposed to daylight, causing the yellowing of paper or wood.
Microbial and enzymatic degradation of lignin is a complex biochemical process. So to say lignin decays by "white-rot fungi".

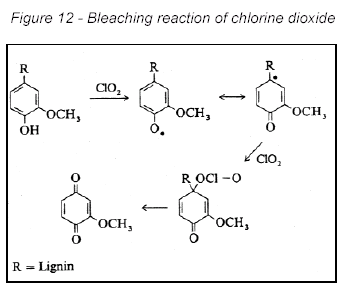

In the lignin-degrading bleaching of pulp, bleaching chemicals like ozone, hypochlorite and oxygen causes degradation of lignin polymer. This is exemplified by the reaction of chlorine dioxide in Figure 12 (Römpp, 1992).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 12 - Bleaching reaction of chlorine dioxide

The knowledge of the chemical, physical and biological properties of the pulp and paper mill effluent ingredients is the general basis of further investigations

4.2 Treatment Concepts
After the analysis of the different wastewater streams and their compounds a new treatment concept had to be developed. As described in the introduction (Chapter 2) Sari is already equipped with a biological treatment stage.
The existing treatment plant reaches a BOD-degradation of up to 98 %, but the reduction of the COD load of 87 % has to be improved. The high BOD elimination shows that the existing plant successfully eliminates the biodegradable part of the organic pollution load. However, refractory COD, caused by the lignin derived species, as explained above, and partially contained in the selected sub-streams, limits the COD removal achievable with this plant.

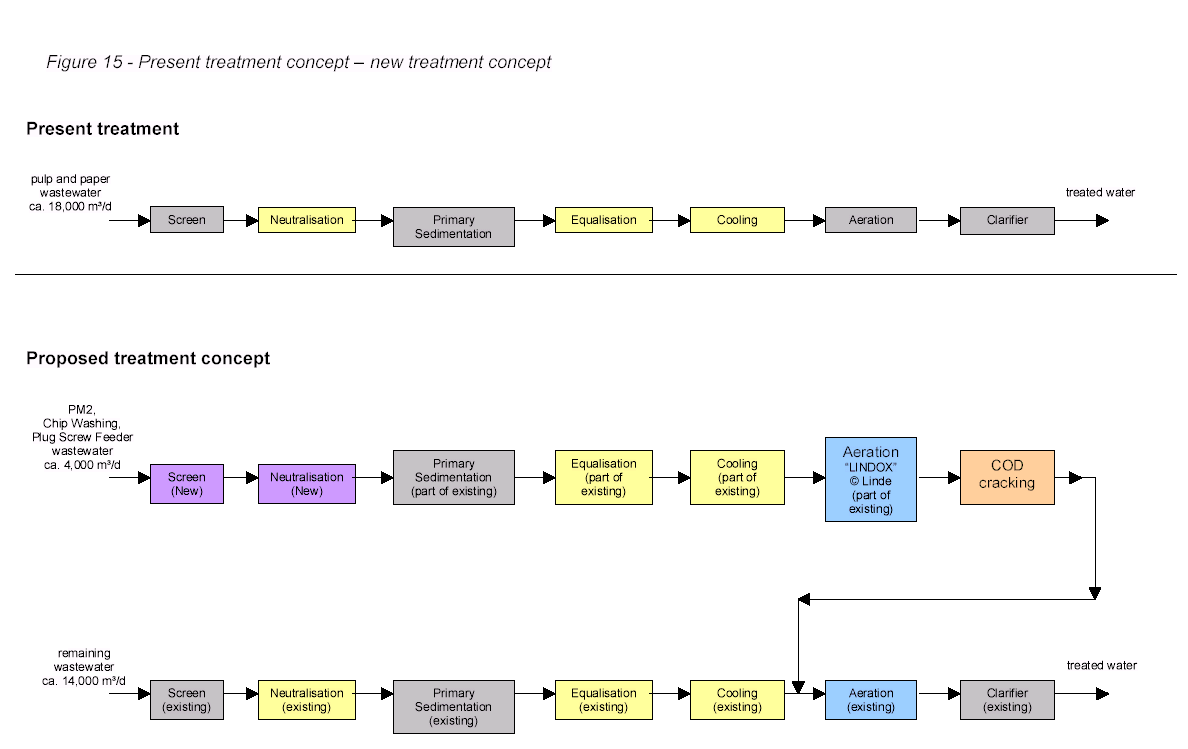

Figure 15 points out the present treatment concept based on an activated sludge process.
A new treatment concept is developed based on the results of respective test results.
In order to conduct the pre-studies 700 l of wastewater (selected sub-streams) were air freighted from Sari to the Linde laboratory in Munich.

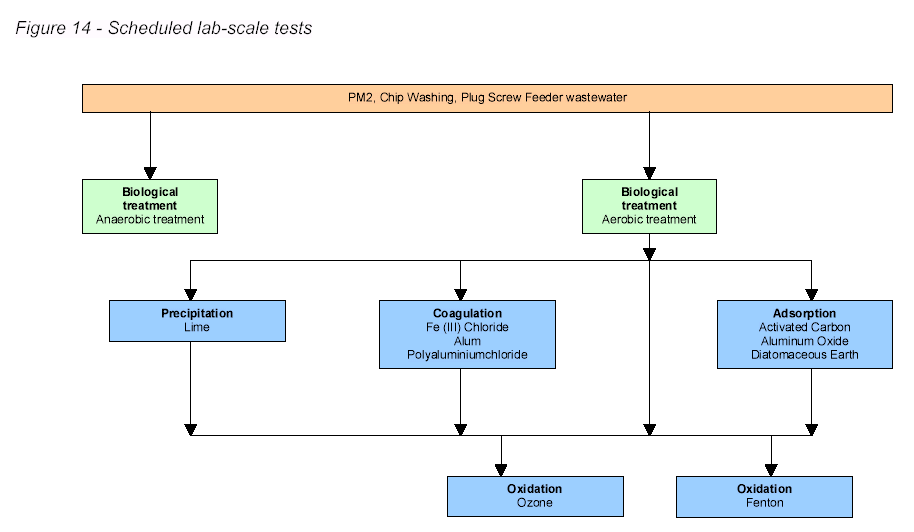

A principal scheme of all scheduled lab-scale tests is shown in Figure 14.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 14 - Scheduled lab-scale tests
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 15 - Present treatment concept - new treatment concept


4.2.1 Biological treatment
Today, the most common wastewater treatment procedure is biological, whereby concentrated masses of microorganisms break down organic matter, resulting in the stabilisation of organic wastes. These microorganisms are broadly classified as aerobic, anaerobic or aerobic and anaerobic (facultative). The facultative organisms may function in either an aerobic or anaerobic environment. The aerobic organisms require molecular oxygen for metabolism; anaerobes derive energy from organic compounds and function in absence of oxygen.
The predominant species used in biological systems are known as heterotrophic microorganisms. These require an organic carbon source for both energy and cell synthesis. Autotrophic organisms in contrast, use an inorganic carbon source such as carbon dioxide or carbonate and derive energy from the oxidation of inorganic compounds such as nitrogen, sulfur or from photosynthesis (Fox, 1976).

For the planned biological treatment two different approaches were tested. A pure oxygen activated sludge system, a subdivided part of the existing treatment plant and/or an external anaerobic reactor.

Pure Oxygen Activated Sludge System

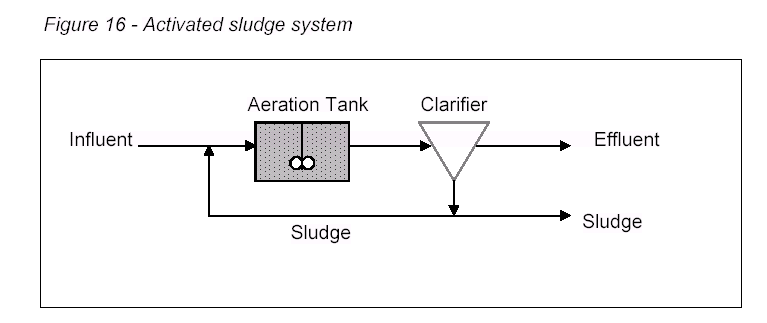

The activated sludge process is a continuous system in which microorganisms grow under aerobic conditions and form so called activated sludge flocks. These flocks are mixed with wastewater in the reactor and then physically separated by gravity clarification.
The aerobic degradation of organic substances takes place almost exclusively through bacteria and lower fungi. By using synthetic aeration and a high concentration of microorganisms the degradation processes faster. The bacteria take up the solute through their cellular membrane. With the presence of nutrients like phosphorous and nitrogen the microorganism can produce proteins. With the oxidation (combustion) of carbonated substances the cells can meet the energy demand for the metabolism. Overall the final products of this reaction are CO2, H2O and biomass (Möbius, 1997).
The concentrated sludge is recycled to the reactor and mixed with the incoming waste. Oxygen is provided by oxygen-enriched air through surface aeration.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 16 - Activated sludge system

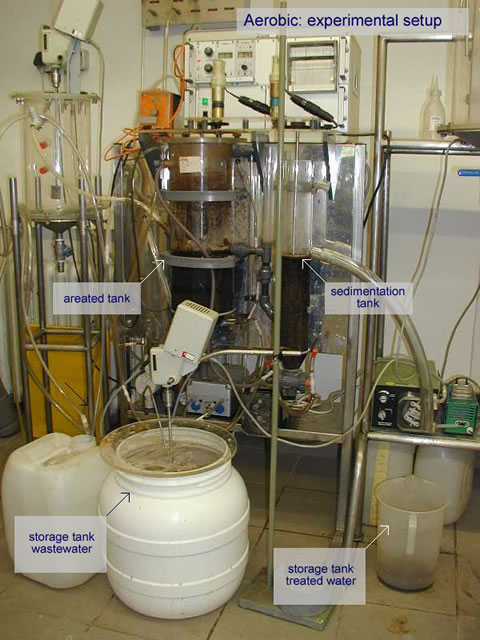

Aerobic laboratory test plant

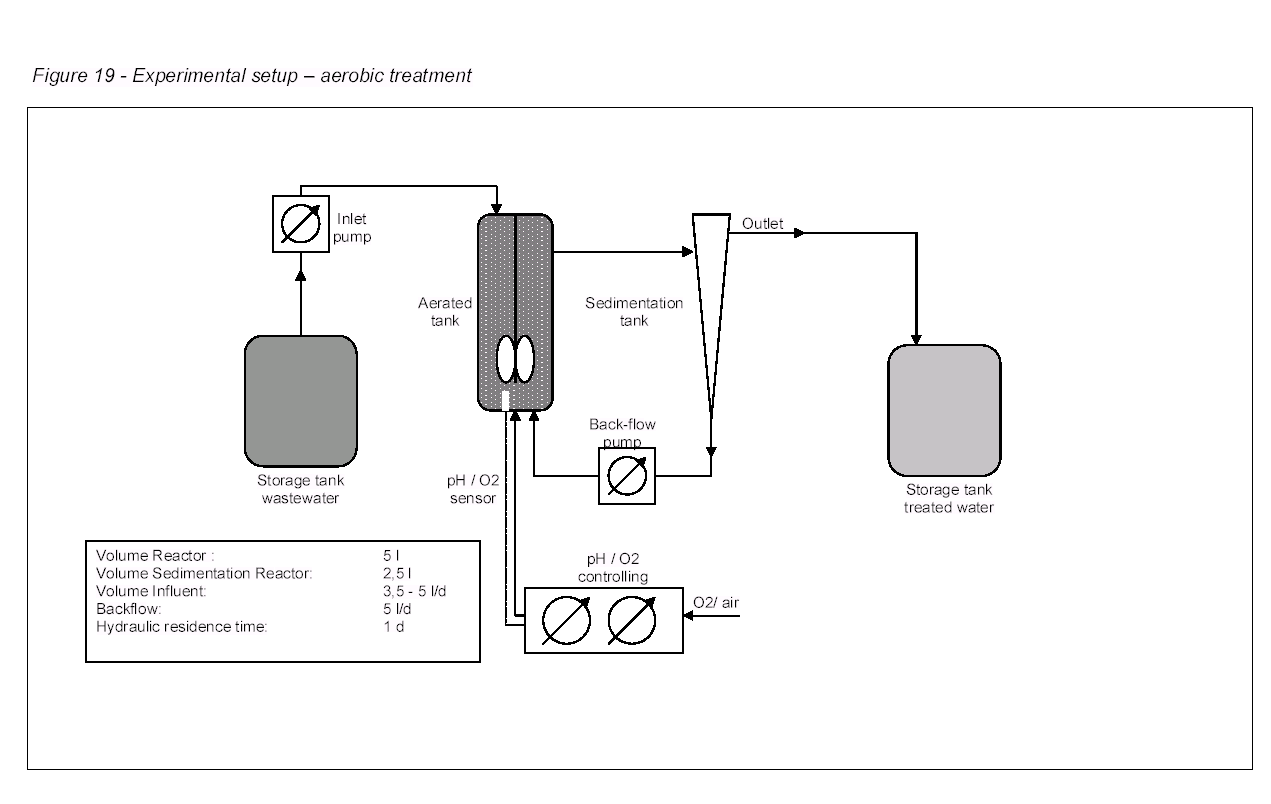

Even though measurements existed concerning the aerobic biological degradability of the total effluents it was necessary to investigate the biodegradability of every selected sub-stream. For that reason a small test plant was installed at the Linde laboratory. The experimental setup is shown in Figure 19.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 19 - Experimental setup - aerobic treatment
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 89 - photo - aerobivc experimental setup

The reactor consisted of an aeration tank with a reaction volume of about 5 l and an additional clarifier tank. Substrate was pumped from a storage tank into the aeration basin. Compressed air or pure oxygen was utilized to satisfy the oxygen demand of the microorganisms. Sensors monitored the oxygen content in the reactor and the pH value, respectively. A controlled volume of settled sludge in the clarifier was recycled into the aeration basin.

Start-up conditions
To save time and to get a working biological culture 10 days prior to the arrival of the samples from Sari the test plant was started up with wastewater and sludge from a pure oxygen operated activated sludge plant treating sulfite pulp mill effluent at Mannheim Germany.
In the start up phase the flow rate was increased continuously up to 4-5 l/d. The recycle rate was set to 5 l/d (100 %). Sometimes it was necessary to dose some phosphoric acid in order to control the pH value as well as nutrient addition. The oxygen supply was regulated between 3.6 and 4.5 mg/l.

Before getting realistic results about the treatment capacity the microorganisms have to adapt to the given conditions. To avoid shock loadings it was decided to gradually substitute the effluent from the German plant by the Sari wastewater. Figure 20 shows the different influent concentrations.
The hydraulic retention time was set from 0.4 to 1.0 d in average due to the higher influent concentrations and organic load, respectively. The analysis of the influent water showed that it was necessary to dose extra nutrients (ammonium phosphate, see Figure 18) to get optimal conditions for bacterial growth.

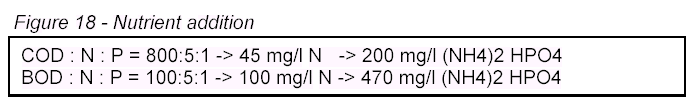

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 18 - Nutrient addition
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 20 - Comparison of the influent parameters Mannheim - Sari

Wastewater composition

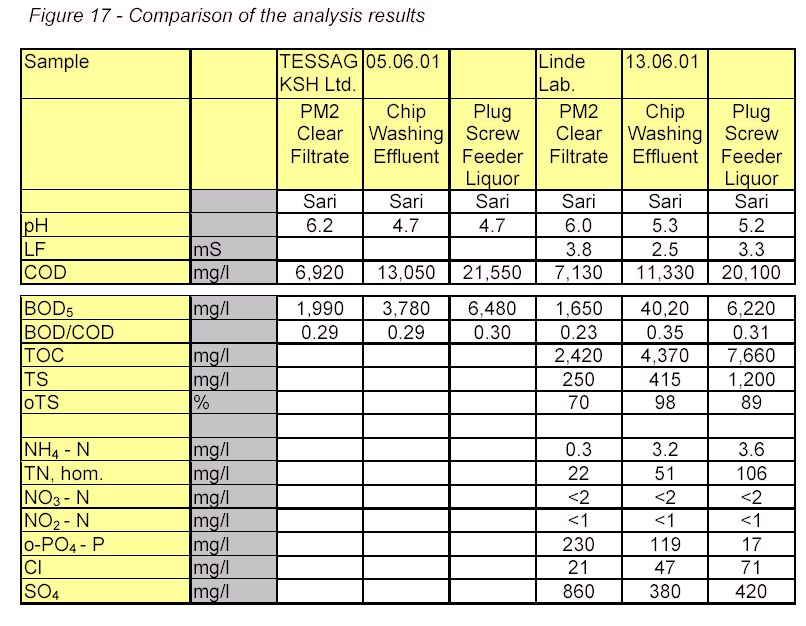

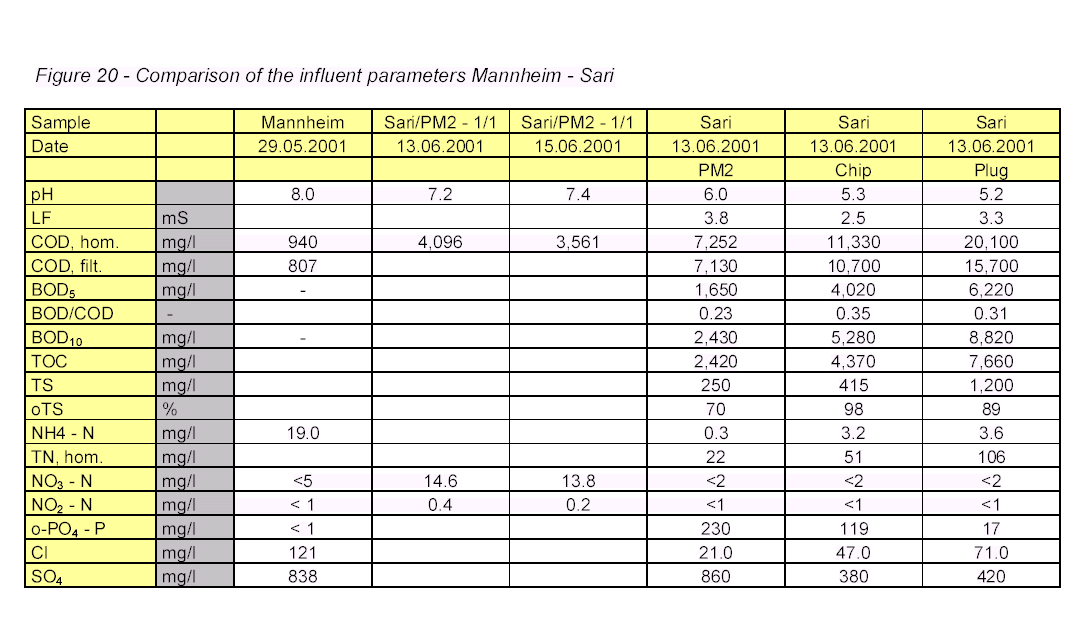

The wastewater samples from Sari included 400 l of PM2 effluents, 150 l of Plug Screw Feeder clear filtrate and 150 l of Chip Washing effluent. Subsequent chemical analysis verified the respective data submitted by the Canadian company as listed below in Figure 17.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 17 - Comparison of the analysis results

It is obvious that the BOD/COD ratio 0.23 of the PM2 effluent is the lowest and the PM2 flow of 3,800 m³/d is the highest. For this reason the focus was set on the investigations of this sub-stream. For the aerobic treatment it was planned to use the PM2 effluent first and in a second step to proportionally compose a wastewater mix from the three sub-streams according to the "real" conditions.

Results
Six days after changing to PM2 effluent, a good adaptation of the biomass was obtained. The COD concentration was reduced from 7,200 mg COD /l to 3,200 mg COD /l. A COD degradation of only 56 % is a typical value for poorly biodegradable pulp and paper mill wastewater (see Figure 21).

Another typical effect for this kind of wastewater was observed after aerobic treatment. The colour of the water changed from beige to deep brown/black due to a partial oxidation of the polymeric lignin compounds.

During the aeration intervals intensive foaming was observed. As a consequence the pure air aeration was replaced by an air and pure oxygen mixture.

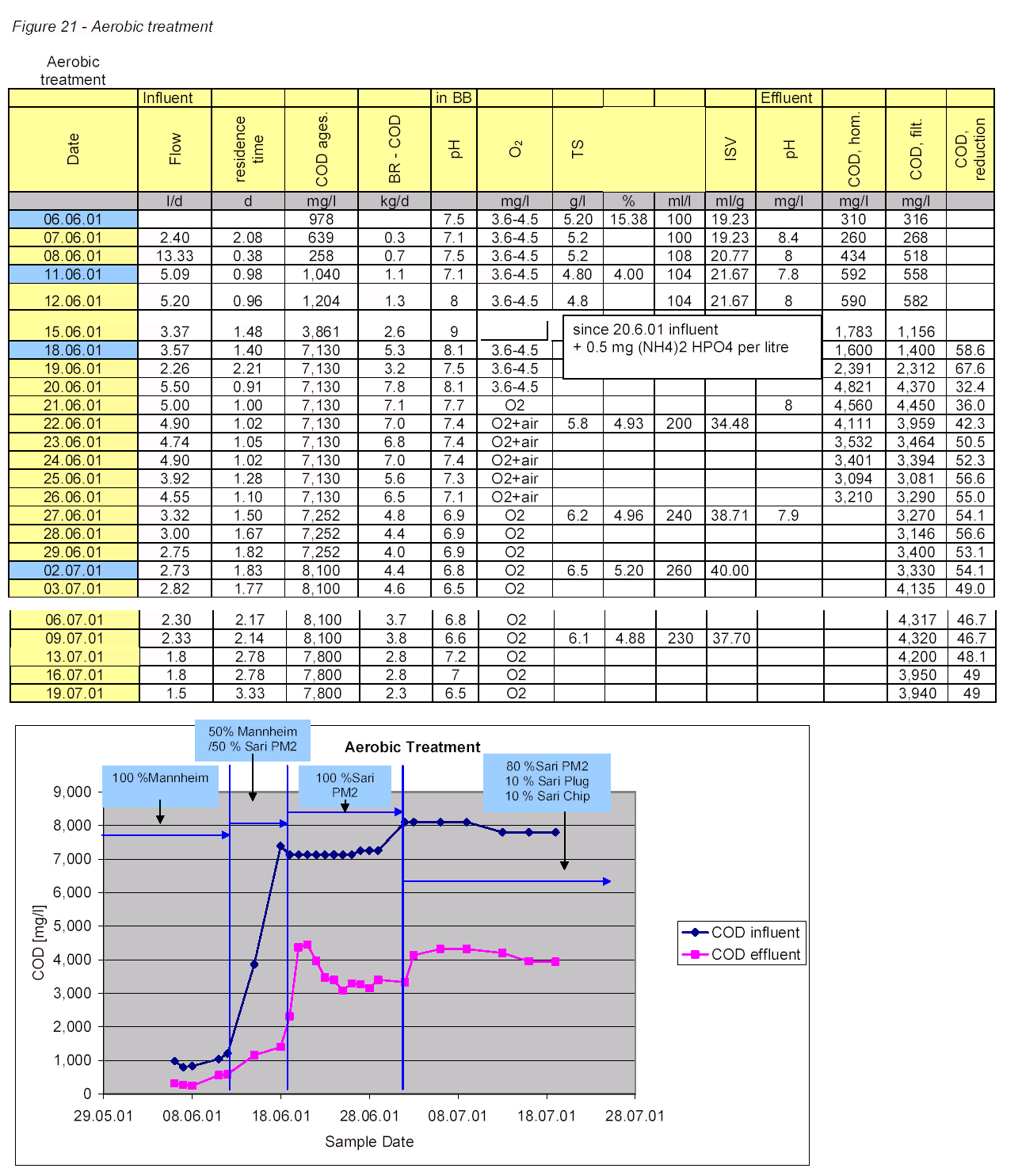

The treatment parameters during the test period are listed in Figure 21.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 21 - Aerobic treatment

The next step was to change the pilot influent from PM2 water only to a proportional mix of the three wastewater streams. The influent COD concentration inclined from 7,200 mg/l to 8,100 mg/l. Cause of the slight difference between the influent COD values it was expected that the adaptation phase would complete faster than before.
Finally similar to the pure PM2 water about 50 % of the COD could be reduced. That was not surprising causes of the ingredients are more or less the same like in the PM2 wastewater.

Anaerobic wastewater treatment

Anaerobic treatment is defined as biological oxidation of wastewater by microbes in the absence of molecular oxygen. The activity of a complex mixture of microorganisms involves degradation, transformation, and synthesis reactions of organic matter and is finally leading to mineralization (Rintala, 1993).

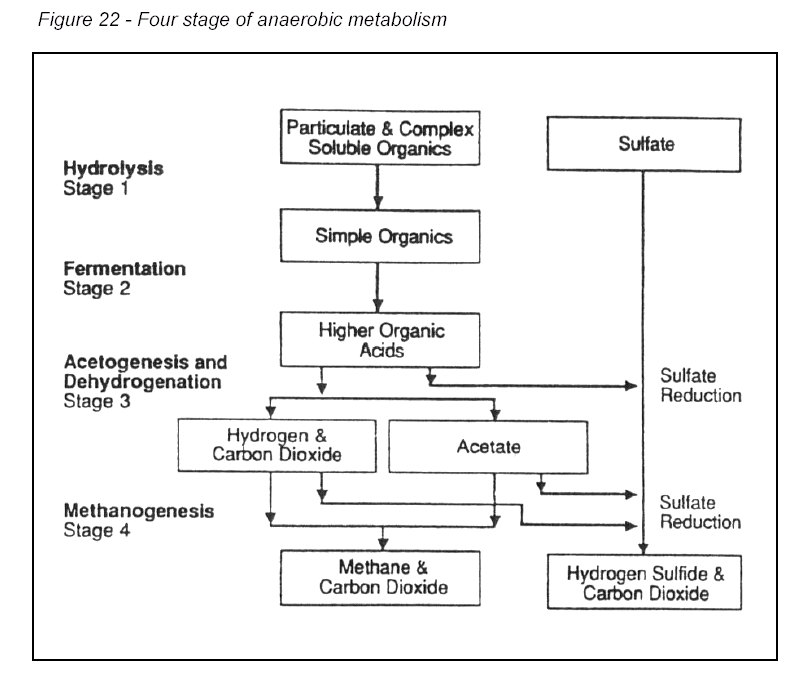

Three basic groups of bacteria are involved in this multistage process. The complex organic compounds are sequentially converted, through a series of intermediate compounds, to methane and carbon dioxide, as indicated by the four-step process shown in Figure 22 (Möbius, 1997).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 22 - Four stage of anaerobic metabolism

Complex, high molecular weight, soluble organic compounds (carbohydrates, proteins) must first be hydrolysed (Stage1) to simple organics (simple sugars, amino acids, glycerol, fatty acids).
These simple organics are converted by acid-forming bacteria to higher organic acids and to acetic acid, hydrogen and carbon dioxide in a fermentation or acidogenic phase (Stage 2).
The higher organic acids are subsequently transformed to acetic acid and hydrogen (Stage 3) by acetogentic bacteria. The acidogenic and acetogentic bacteria belong to a large, diverse group that includes both facultative and strict anaerobes. Depending on the wastewater characteristic one of the groups predominates.
The final step (Stage 4) to produce methane is carried out by three groups of methane bacteria. These strict anaerobes are capable of metabolizing formic acid, methanol and carbon monoxide, as well as acetic acid, hydrogen, and carbon dioxide to methane (Lee, 1987).
It is known that in anaerobic processes where inorganic sulfur is a ingredient of wastewater, the sulphate reducing bacteria are very important. Sulfate and sulfite is present in the effluents from neutral sulfite semi-chemical (NSSC) or chemi-mechanical (CMP) pulp mills (Umweltbundesamt, 1995).
The Sari pulp and paper production uses these pulping methods. The sulfur reducing bacteria use sulfate and sulfite as electron acceptors in their metabolism. Sulfur reduction can become a significant factor in the performance and operation of pulp and paper anaerobic treatment. The hydrogen sulfide produced can be both toxic and corrosive. Generally, the hydrogen sulfide dissociates in water in two steps. The species presents depends on the pH, as indicated in Figure 23.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 23 - Sulfide species as function of pH

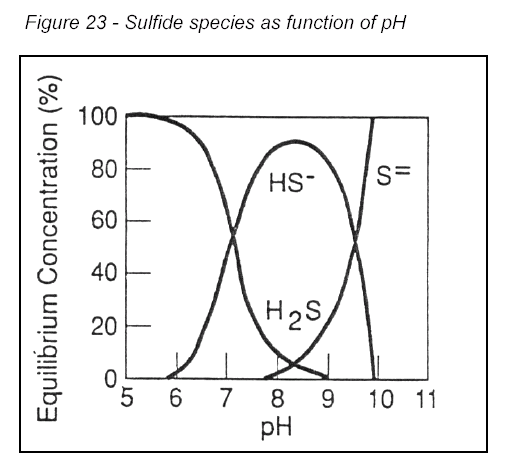

Undissociated H2S is the most toxic sulfide species. Inhibition can be minimised by increasing the pH (Lee, 1987).
It is obvious that the anaerobic metabolism is a sensitive system which has complex pretension to process variables. On that account the pH should be regulated between pH 9.7 and 7.4. Another important characteristic of this process is the operating temperature of 32 - 37 °C (Fels, 1997).

Anaerobic laboratory Test Plant
Although the recent plant configuration in Sari does not include an anaerobic treatment stage, it is known from literature that especially pulp and paper mill effluents are suitable for anaerobic treatment (Kortekaas, 1998).
Hence, the Chip Washing effluent and the Plug Screw Feeder clear filtrate were chosen because of their high COD concentrations of 11,000 - 20,000 mg COD/l and low flow of 300 m³/d, respectively.
As a third step, a 1:1 mixture of both wastewater streams was composed as influent. In order to avoid a breakdown of the sensitive biocenosis due to the high acidity of this mixture it was necessary to neutralise the influent prior to feeding.

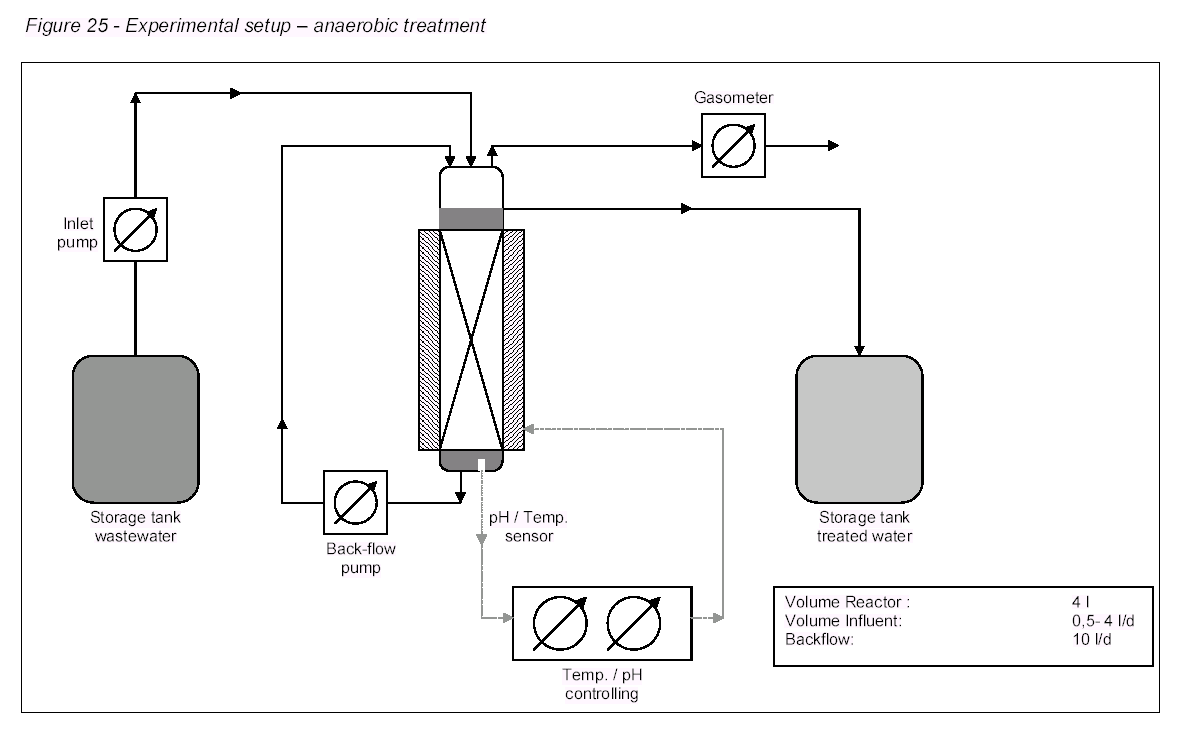

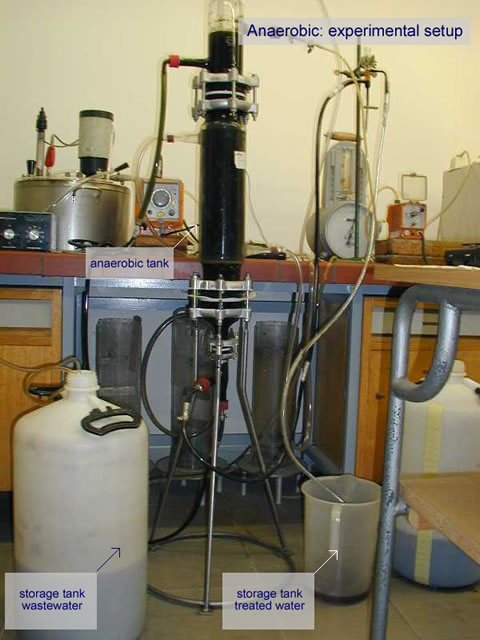

The set-up of the anaerobic test plant is shown in Figure 25.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 25 - Experimental setup - anaerobic treatment
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 90 - photo - anaerobic experimental setup

Start-up conditions
As described above an anaerobic system is very sensitive towards significant milieu changes. For this reason a consequent pH and temperature control is obligatory.
In general, the residence time in an anaerobic reactor is higher than in an aerobic reactor due to the lower growth and conversion rates, respectively. Thus, the flow was regulated to 1.5 l/d in average. To start up the anaerobic treatment as fast as possible anaerobic sludge from the municipal treatment plant in Starnberg (Munich) was utilised as an inocculum.
The general procedure was similar to the start-up of the aerobic treatment tests (see Chapter 4.2.1 pure oxygen wastewater treatment). Subsequently, the anaerobic reactor was fed with different wastewater compositions: a mixture of PM2 and Mannheim wastewater in the beginning followed by pure PM2 effluents after 10 days of stable operation - indication for a reasonable biomass adaptation.

Results

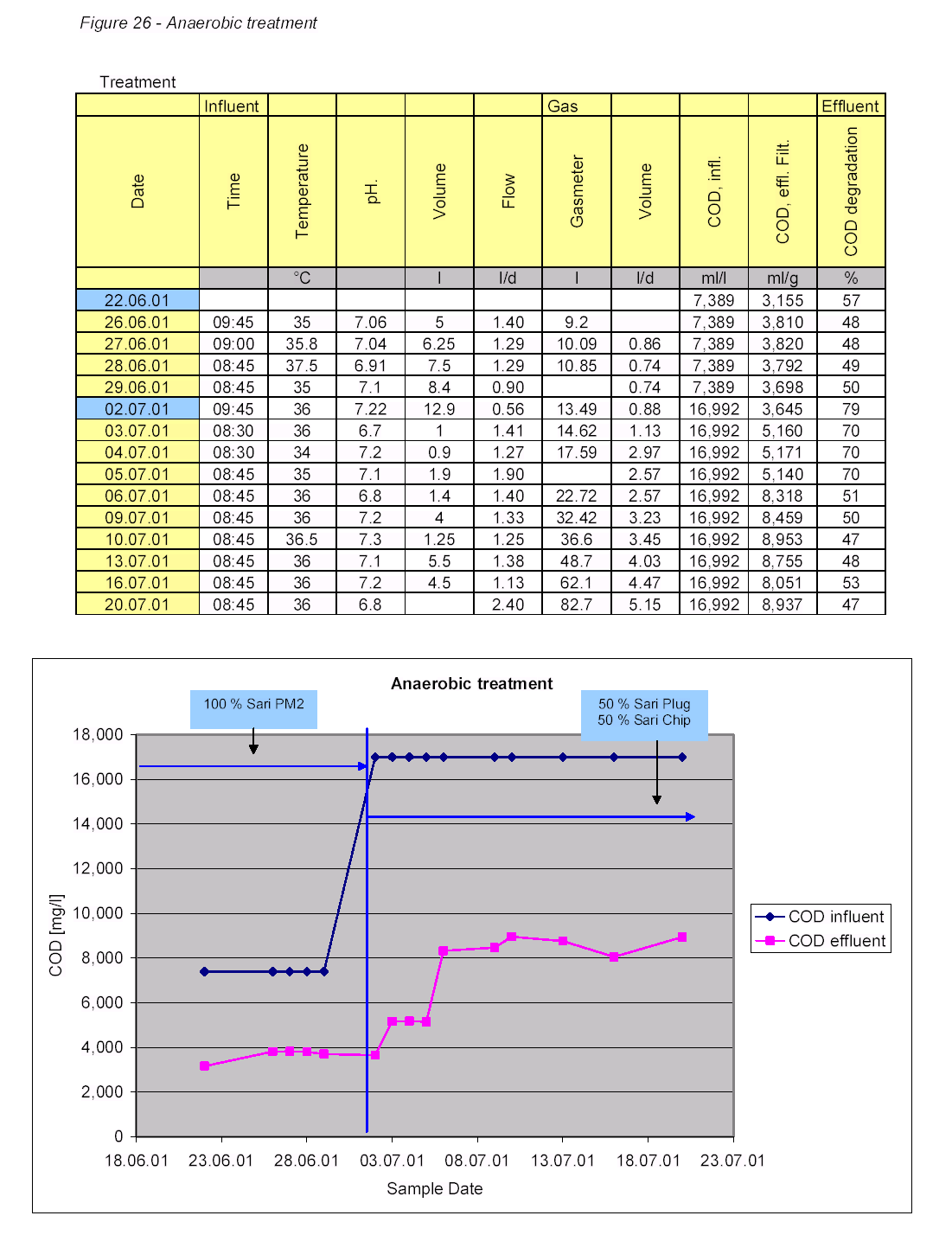

The COD reduction of 50 % under anaerobic conditions was not significantly lower compared to the aerobic treatment (55 %). The COD concentration decreased from 7,200 to 3,600 mg COD/l (see Figure 26).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 26 - Anaerobic treatment

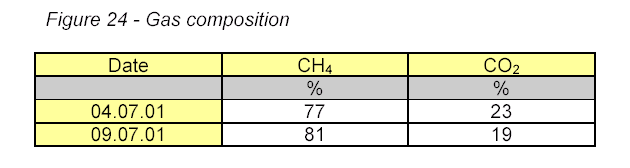

The gas production, a measure of the suitability of wastewater for anaerobic treatment, amounted to 0.8 l/d. The composition of the gas indicates that the wastewater did not contain serious inhibitor substances. The composition of gas produced is presented in Figure 24.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 24 - Gas composition

4.2.2 Chemical treatment
Even though biological treatment of the selected substreams reduces the COD in the range of 50 - 60 % only, it is an indispensable first treatment step, as it limits the consumption of more costly utilities by chemical treatment.
The chemical treatment of pulp and paper mill effluent represents a traditional and well-known method.
In Sari, a subsequent chemical treatment stage after the biological stage was already installed, but the expected results could not be observed. Figure 27 shows the results of further investigations by the Canadian company

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 27 - Flocculation and Coagulation test with the total effluents

It is obvious that the amount of chemicals needed would be intolerable high. On the one hand the strong dilution of the wastewater stream could have caused a weakening of the coagulation effect; on the other hand it is possible that a part of the effluent was unsuitable for this kind of chemical treatment.
For this reason the suitability of the highly concentrated sub-streams for chemical treatment methods had to be investigated.

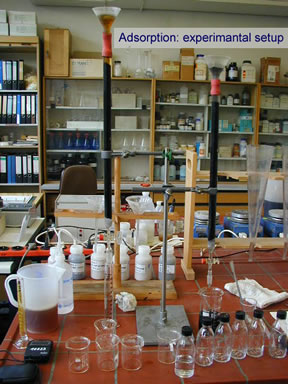

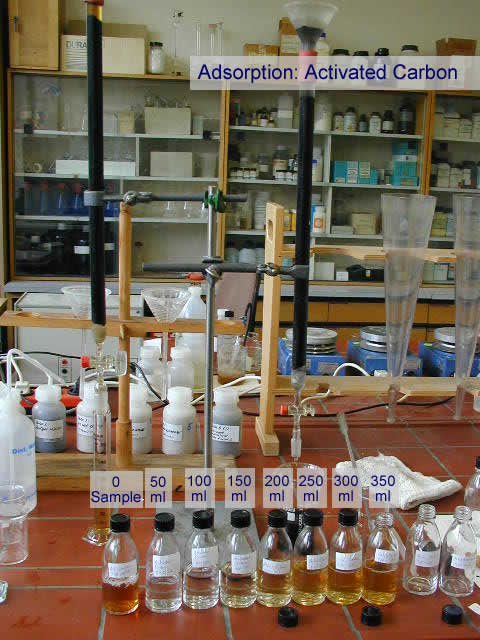

The practicability of different methods, for flocculation, adsorption and oxidation was tested in lab-scale experiments.

Coagulation and Flocculation
The stability of a suspension depends on the number size, size, density, surface properties of the solid particles and on the density of the external phase or dispersion medium.
In aqueous suspensions, the particle surface has an electrical, usually negative charge. If counterions, for instance Ca2+, are present in the surrounding water, they accumulate on the surface of the suspended particles, forming an ionic double layer. The excess negative charge at the shear surface of the double layer, the zeta potential, can be measured. As the zeta potential increases, the coulombic repulsion between the particles becomes stronger and the suspension is more stabile.
Four models are currently used to explain how flocculants aid particle agglomerate:
Double layer compression (Coagulation)
Specific ion adsorption (Coagulation)
Polymer charge patch (Flocculation)
Polymer bridging (Flocculation)
However, more than one of these mechanisms probably act simultaneously (Ullmanns, 1988).

The coagulation and flocculation are similar and their definitions vary.
Coagulation is defined as the agglomeration of suspended particles due to the reduction of the repulsive forces caused by surface charge that keeps them separate and suspended in liquid medium (Fox, 1976). The repulsive forces are reduced either by addition of inorganic electrolytes, which shield the repulsive surface charges, or by addition of polyelectrolytes that bind to and neutralise the surface charge.
Flocculation is the agglomeration of particles due to the bridging effect exerted by polymers that are adsorbed to more than one particle. Often both mechanisms occur simultaneously when polymeric polyelectrolytes are involved. Flocculated aggregates tend to be more porous than coagulated aggregates (Ullmanns, 1988).

Fe (III) Chloride, Aluminium Sulfate (Alum), Polyaluminiumchloride (PAC)

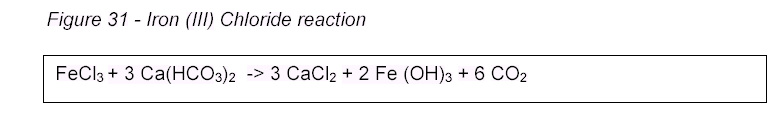

Fe (III) Chloride or Alum is frequently used as coagulant because of the relative low costs. These coagulants dissolve readily in water and the metal ions form hexaquo complexes, which are acidic species and give up protons. The tervalent aluminium and Fe use the specific ion adsorption for agglomeration.

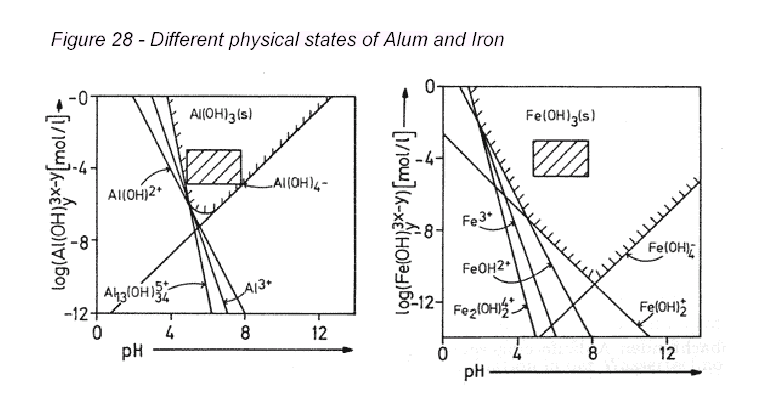

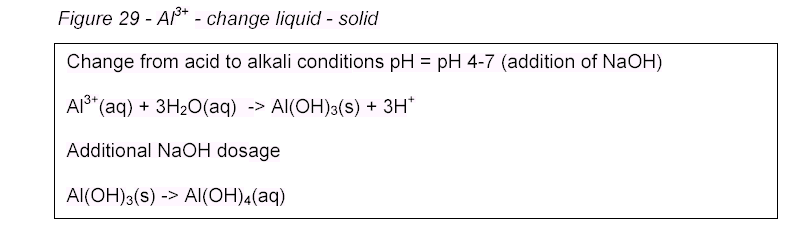

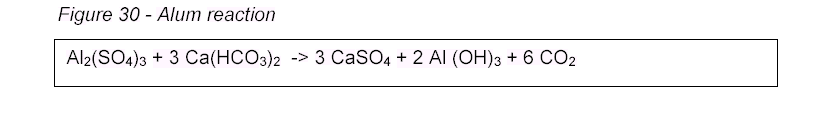

Whereas the Fe (III) Chloride reacts less sensitive to pH variation, Alum requests highest attention on the pH value. Figure 28 point out the different physical states of the metals by changing the pH value. Figure 29 shows the change of Al3+ from the liquid to the solid and again to the liquid physical state by varying the pH value. To neutralise the hydrogen atoms formed in hydrolysis of Aluminium Sulfate or Fe (III) Chloride, some carbonate hardness is consumed (Figure 30, Figure 31).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 28 - Different physical states of Alum and Iron
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 29 - Al3+ - change liquid - solid
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 30 - Alum reaction
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 31 - Iron (III) Chloride reaction

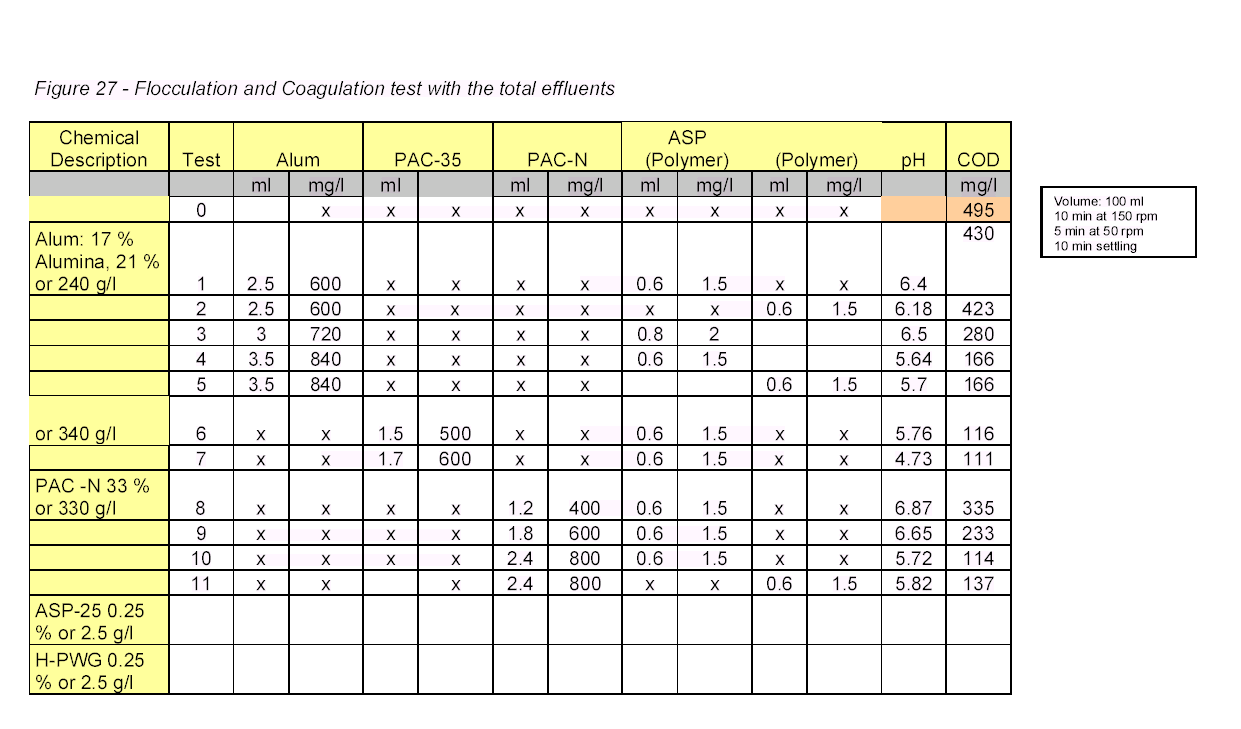

To take advantage of the liquid/solid properties of the alum it was foreseen to recycle the alum. As described in Figure 30 the added Aluminium Sulfate should coagulate with the lignin compounds in the wastewater. The resulting sludge would be separated in a clarifier. By changing the pH value the Alum would be soluble. With aid of Ozone or Fenton's reagent the high concentrated lignin solution could be oxidised and the rested Alum solution would be recycled.

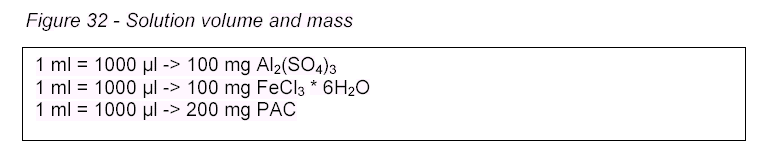

For the coagulation tests with Alum, Fe (III) Chloride, PAC the aerobically pretreated PM 2 wastewater was used. As coagulant a 10 % Aluminium Sulfate, 10 % Fe (III) Chloride and 20 % Polyaluminiumchloride solution were prepared. Figure 32 shows the connection between the solution volume and mass of the different solutions based on the molar weight.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 32 - Solution volume and mass

In each case 100 ml samples where mixed rapidly with the coagulation solution. In the next step a magnetic stirrer should encourage the coagulation by rotating slowly for 10 minutes followed by a sedimentation period of 30 min. Different concentrations of the added coagulation substance should inform about the affectivity. Especially in case of the Alum the pH value had to be monitored. It was corrected by adding NaOH or HCl.

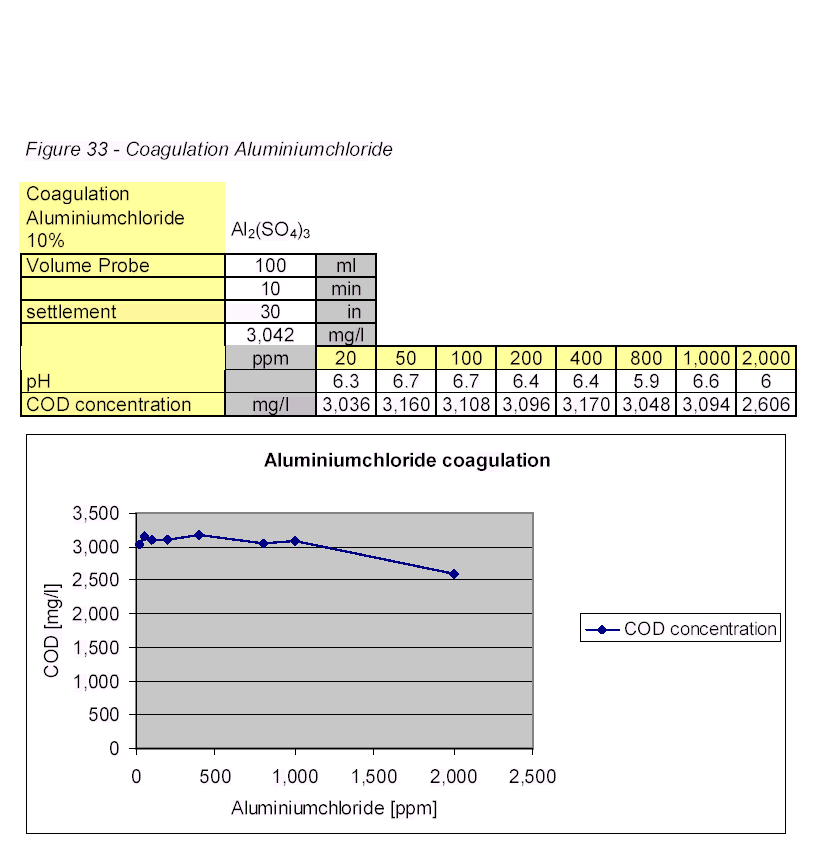

Figure 33 to Figure 35 describe the results obtained.

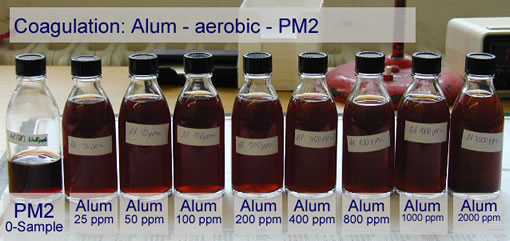

No essential effect could be observed with Aluminium Sulfate up to a concentration of 2000 ppm. The COD concentration was only reduced from 3000 mg COD/l to 2600 mg COD/l.

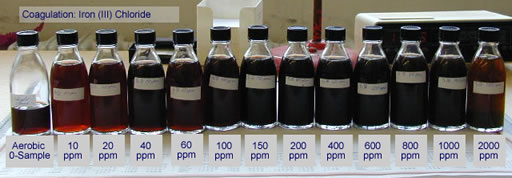

Fe (III) Chloride achieved a final COD concentration of 1,900 mg/l (original sample 3,200 mg/l) at a solution concentration of 2000 ppm.

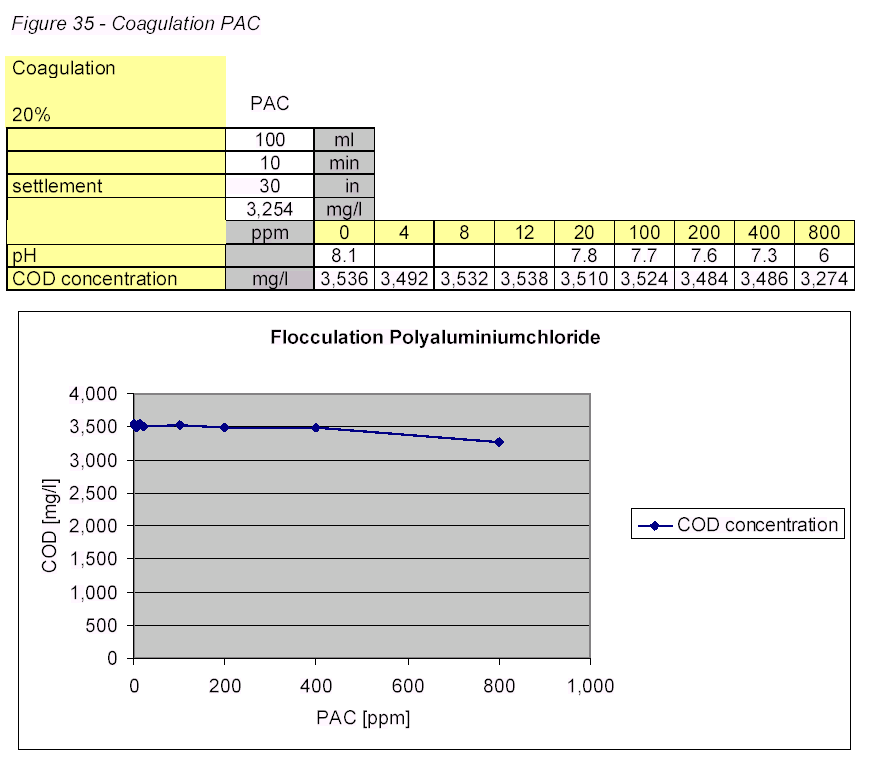

From the PAC experiment, no measurable results could be obtained. Excluding faults in the series of experiments it was tried to change the pH value or the method of mixing but the results did not improve. A closer look revealed that the size of the ligninsulfonates (0.01 to 0.05 µm) might be an explanation as the compounds need a certain size to make sure hitting the regency mechanism between the trivalent Fe or aluminium and the dissolved substances.
Usually, flocculation with polymers is the subsequent step to improve the precipitation process. But in this case a further addition of some organic flocculants did not attain a noticeable effect.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 33 - Coagulation Alum
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 34 - Coagulation Iron (III) Chloride
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 35 - Coagulation PAC
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 91 - photo - coagulation - Alum
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 92 - photo - coagulation - Fe (III) Chloride
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 93 - photo - coagulation - PAC

Precipitation
Precipitation is the formation of insoluble substances from dissolved matter and the chemicals added (Ullmanns, 1988).

Lime
On the one hand Ca2+ is known in wastewater treatment as additive to improve the precipitation of the flocks. The attendance of the cations neutralise the negative charged anions on the surface of the flocks, leads to system instability and as a consequence to the precipitation.

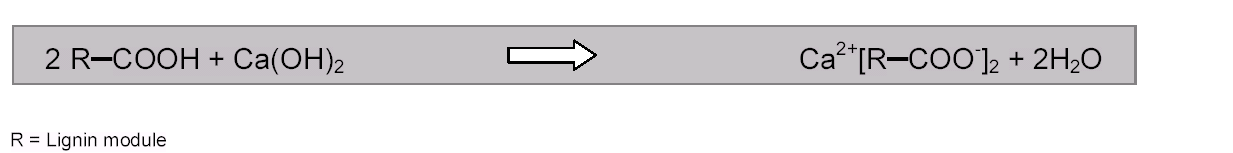

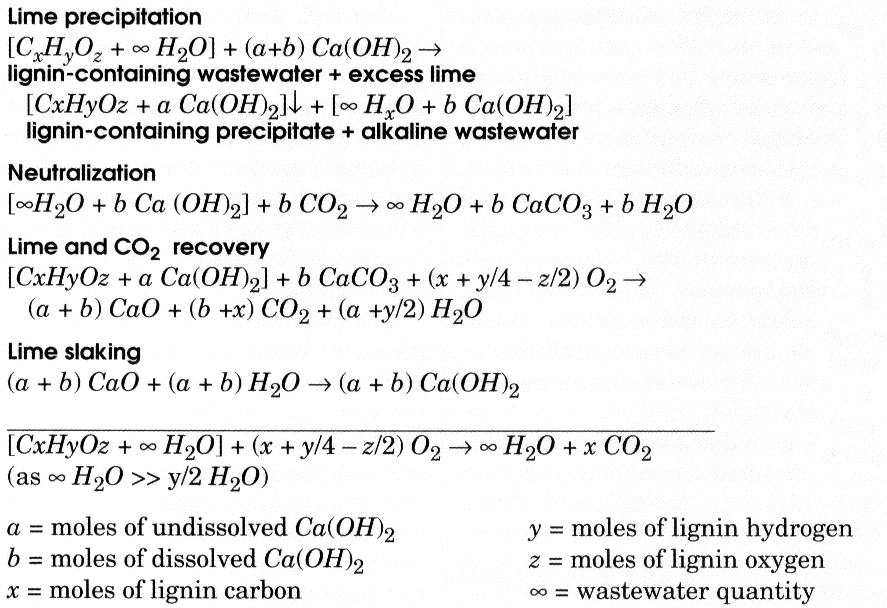

On the other hand the lime as Ca(OH)2 can build a new chemical structure with the dissolved substances. Similar to the "soap effect" the Ca(OH)2 molecule splits off the two OH- anions and the Ca2+ cation links with the substance.

Ca(OH)2 was dissolved in 10 ml of distilled water. The reagent was mixed with a magnetic stirrer prior to adding 90 ml of pre-treated wastewater (aerobic biological treatment). Subsequently, 10 minutes for reaction and 30 minutes for settlement were given. Growing of flocks could be observed. The obvious clarification was confirmed by COD measurements.

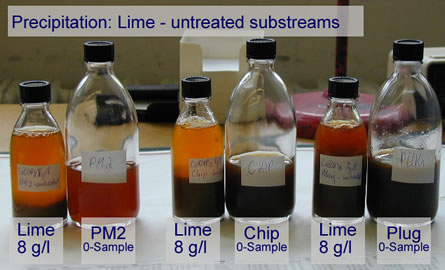

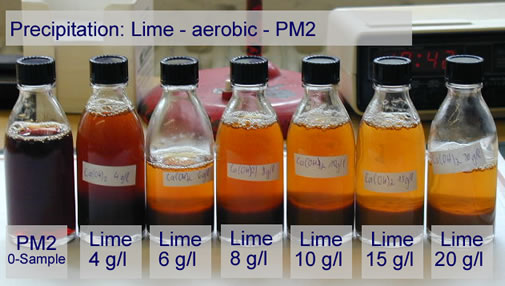

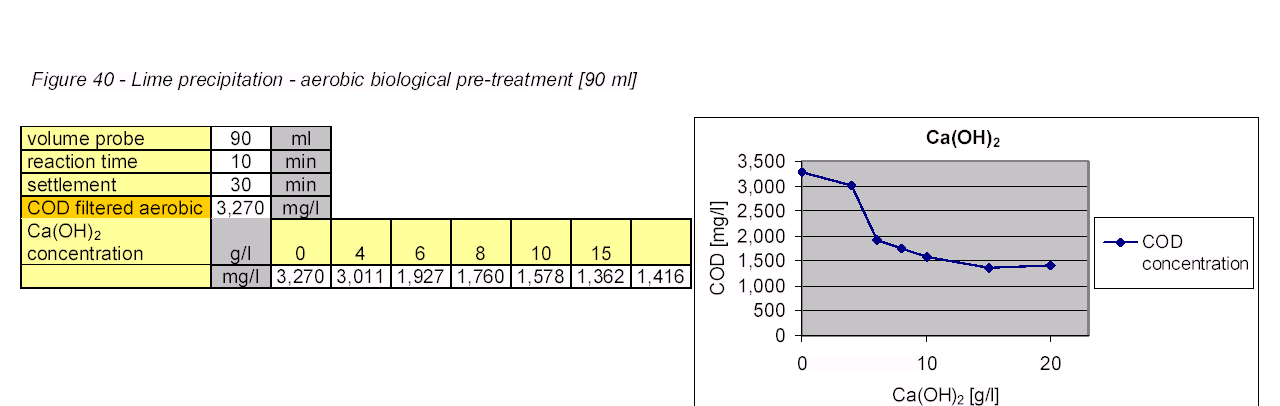

Lime was added in concentrations of 4, 6, 8, 10, 15, 20 g/l. An evident reduction of the COD concentration from 3,270 mg COD/l to 1,927 mg/l could only be realised in the range of 4 to 6 g Ca(OH)2/l.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 40 - Lime precipitation - aerobic biological pre-treatment [90 ml]

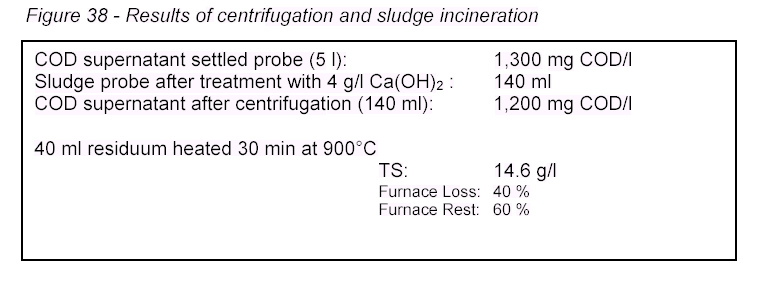

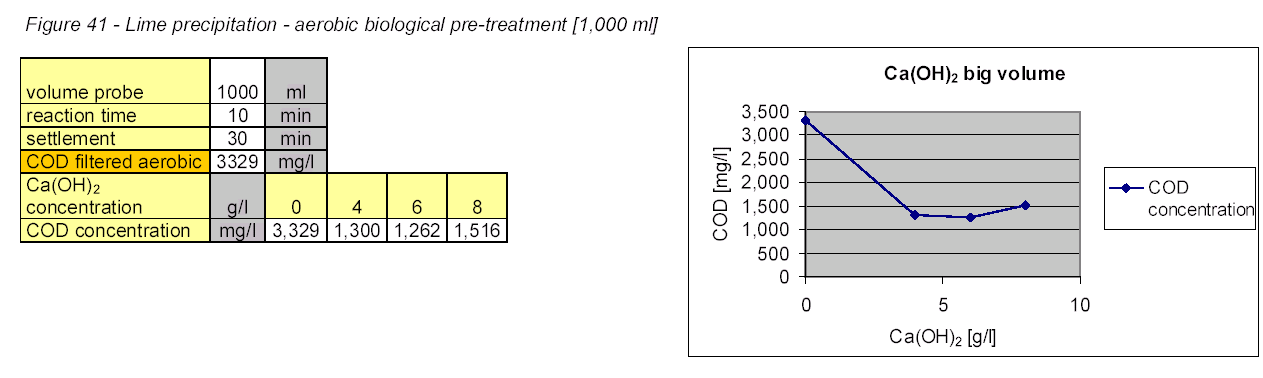

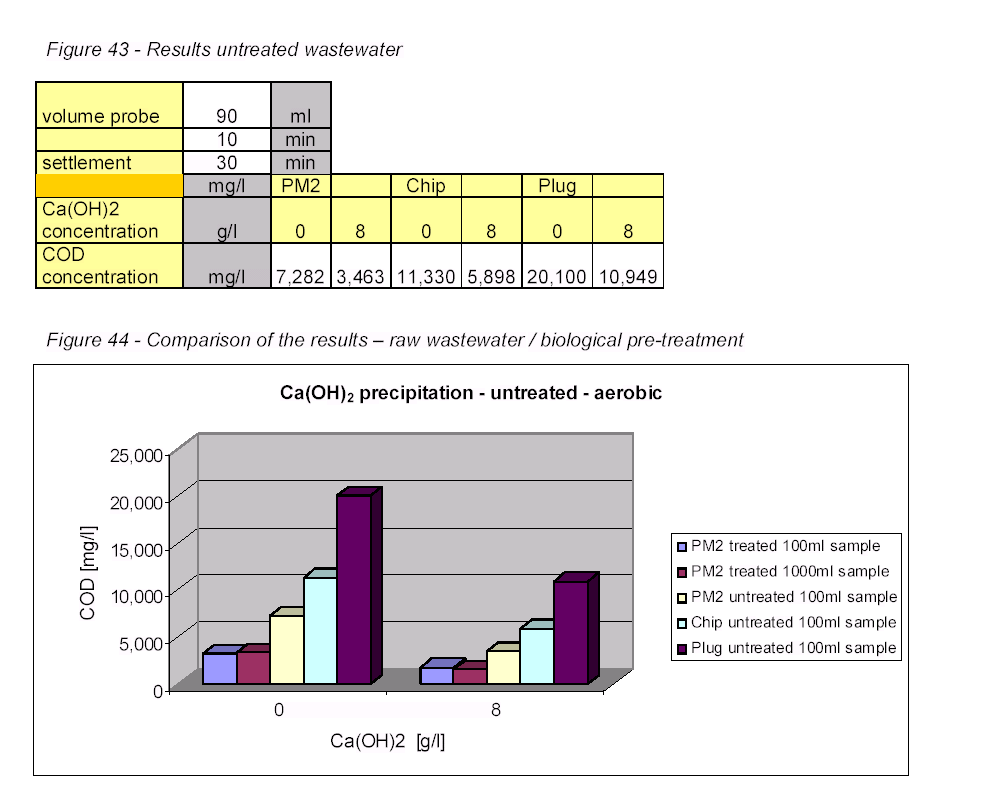

Further lime precipitation tests with sample volumes of 1 to 5 l and an improved Ca(OH)2 addition resulted in higher COD reduction (up to 61 %).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 41 - Lime precipitation - aerobic biological pre-treatment [1,000 ml]

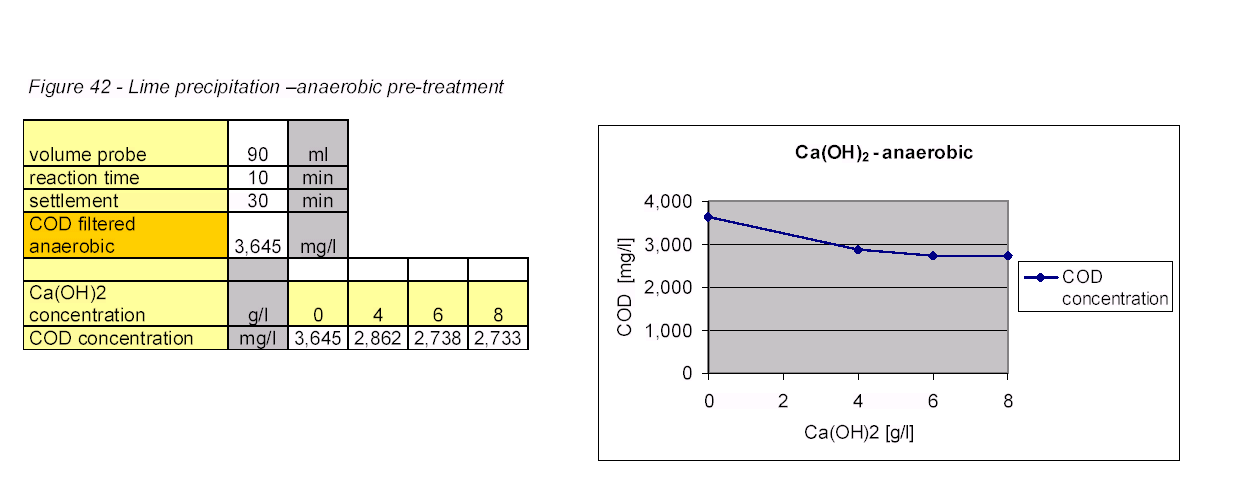

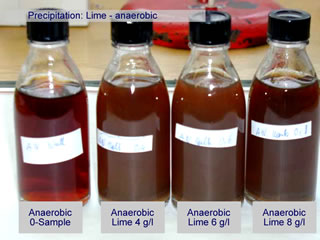

With the anaerobically pre-treated PM2 effluent the COD reduction was less efficient. The addition of 6 Ca(OH)2 g/l led to a degradation of only 25 %. Furthermore, increasing the lime concentration could not enhance the performance.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 42 - Lime precipitation -anaerobic pre-treatment

To get an idea of the efficiency of the lime solutions applied, the COD removal from the untreated sub-streams was also tested. The results present Figure 43 and Figure 44.
An overall COD elimination of 3,800 mg/l (52 %) in the PM2 effluents up to 10,000 mg/l (46 %) in the Plug Screw Feeder filtrate stresses the potential of lime precipitation.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 43 - Results untreated wastewater
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 44 - Comparison of the results - raw wastewater / biological pre-treatment

Former investigations with this type of wastewater conducted by Linde had shown similar results. The low-molecular-weight substances in this wastewater, such as acetic acids, carbohydrates and methanol are degraded in the previous biological treatment. The residual oxygen demanding substances, on average 50 %, consist mainly of poor bio-degradable ligninsulfonates. Figure 36 describes the aerobic bio-treatment of pulp and paper mill wastewater as modified incineration (Morper, 1997).

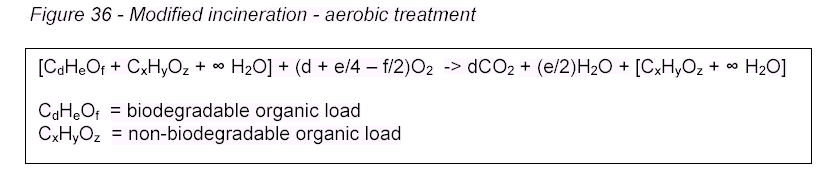

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 36 - Aerobic treatment

As described in Chapter 4.1.3 Analysis, the main compound lignin and the modified ligninsulfonate contain a number of hydroxymenthyl groups, a form of primary alcohols that can be oxidized to the correlative carbonic acids. High-molecular-weight salts, like soaps, are adsorbed on positively charged solids under alkaline conditions. Whereas the aerobic pre-treatment leads to the partial oxidation of the lignin molecules, the anaerobic treatment is a more or less chemical reduction process that does not include such an oxidation. Therefore, lime precipitation after anaerobic treatment brought not as much COD elimination as aerobic pre-treatment (Morper, 1997).
Lime precipitation and potential lime recovery by calcination are described in Figure 37.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 37 - Lignin purification and decolourisation

Evaluation
By transfer of the dissolved lignin from the liquid to the solid phase by lime precipitation, a large sludge volume resulted. By lime precipitation (4 g/l) of aerobically treated wastewater (Figure 3-44) after 30 min of settling the sludge volume equalled 2,500 ml of the total 5,000 ml reactor volume (corresponding to a 500 ml in a 1,000 ml vessel). In this case, the theoretical lime consumption of 18,000 kg/d would result in very high excess sludge production that would be difficult to handle. For compensating reasons, further utilization or reuse of lime should be applied. Thus, sludge treatment after lime precipitation was investigated, too.
Basis for reuse of lime is the dewatering and volume reduction of the sludge. Standard methods represent filter press or centrifugation.
140 ml of sludge from aerobically pre-treated wastewater (applied lime concentration: 4 g/l) was centrifuged. Subsequently, the COD concentration of the clear supernatant was determined. The residuum, 40 ml was heated for 30 minutes at 900 °C. The results are pointed out in Figure 38.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 38 - Results of centrifugation and sludge incineration

It is obvious that after centrifugation most of the precipitated ligninsulfonates remain in the dewatered sludge.
A filtration test should reveal the potential of applying polymers for improving the flocculation ability. Three samples of sludge with different polymer concentrations were filtered while measuring the water flow. As flocculent served a liquid with a concentration of 1g/l, an anionic polymer with the trade name Prästol 2540.

The use of Prästol 2540 helped to improve the sludge dewaterability. This could be recognised from a higher flow rate at the beginning and in the end of the testing period. In addiion, the residuals from the polymer samples were much better detachable from the filter (1 µm).

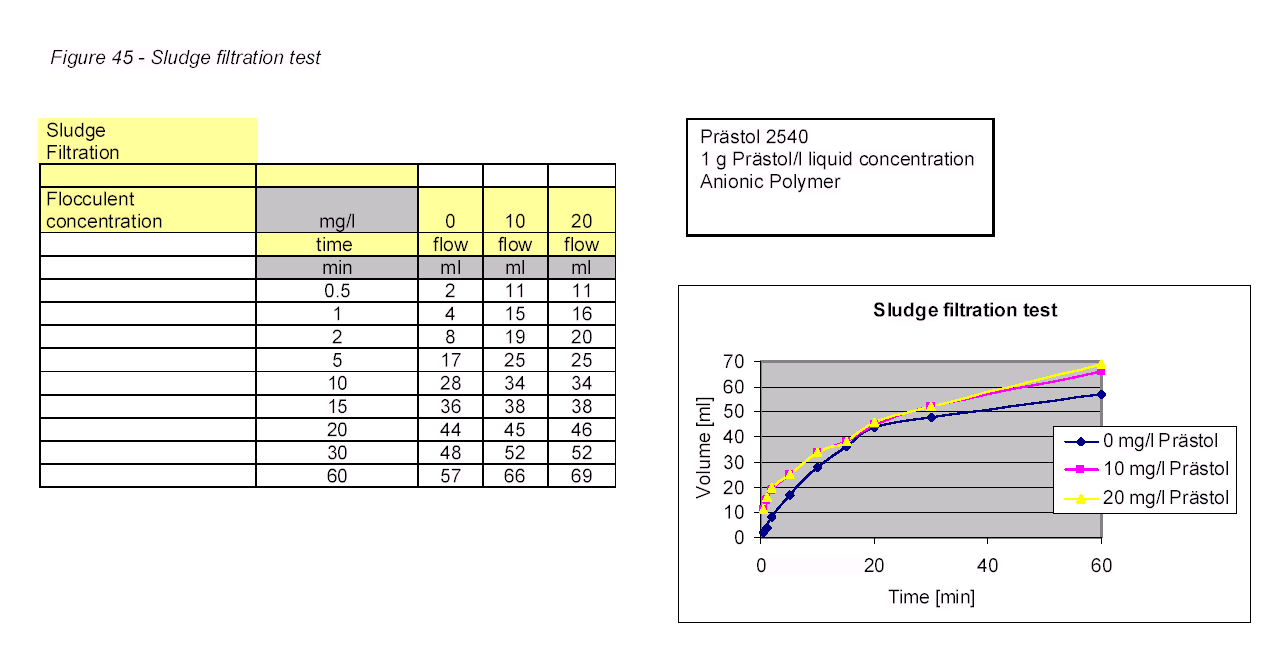

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 39 - Chemical reaction Ca(OH)2
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 45 - Sludge filtration test
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 94 - photo - precipitation - Lime - aerobic
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 95 - photo - precipitation - Lime - anaerobic
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 96 - photo - precipitation - Lime - untreated substreams


Oxidation
Methods like coagulation, flocculation, precipitation, adsorption or filtration described in chapter 4.5) separate the refractory compounds from the effluent to the degree of the respective efficiencies. Unless they are further treated they are stored in the respective wastewater solids.
Another method is the oxidation by powerful chemical oxidants, which can either mineralise organic compounds to carbon dioxide and waste or render large refractory molecules biodegradable by cracking them into low molecular weight species.
These oxidants could enhance the reduction of the COD load. Experiences with different oxidation technologies and different substrates showed that partial chemical oxidation of toxic wastewater compounds may increase its biodegradability up to high levels (Chamarro, 1999).

Fenton
In some publications the Fenton's reagent treatment is described as one of the most effective technologies to remove organic pollutants from aqueous solutions (Chamarro, 1999).

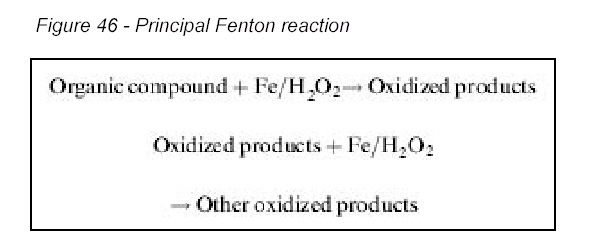

Fenton's reagent consists of a mixture of hydrogen peroxide and Fe salts. There are chemical mechanisms that propose hydroxyl radicals as the oxidant species.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 46 - Principal Fenton reaction

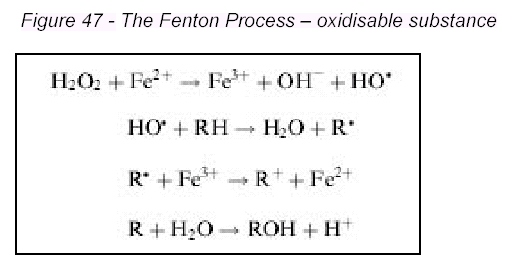

The hydrogen peroxide reacting with ferrous ions forms a strong oxidising agent (hydroxyl radical). The main reactions, which occur in the solution during the Fenton process are described in Figure 47.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 47 - The Fenton Process - oxidisable substance

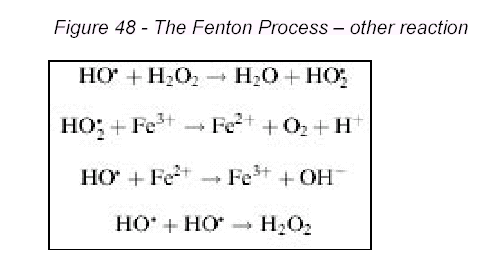

Other possible reactions can also occur:

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 48 - The Fenton Process - other reaction

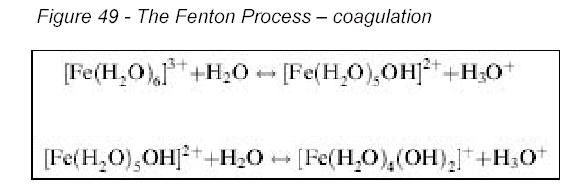

A process of coagulation, which occurs simultaneously to oxidation, involves the formation of hydroxy-complexes of Fe.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 49 - The Fenton Process - coagulation

The products of the reactions presented above polymerise when the pH of the solution is kept between pH 3.5 - 7. The reactions are accurately described in Figure 50 (Szpyrkowicz, 2000).

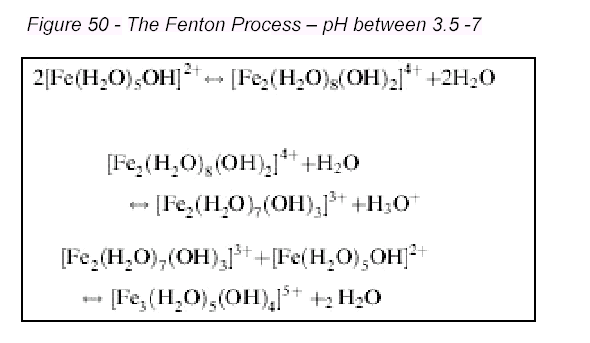

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 50 - The Fenton Process - pH between 3.5 -7

In order to investigate the suitability of the Fenton's reagent for the Sari sub-stream treatment, a test program was developed. Based on published results varying the reaction parameter should give a hint for the optimal composition of the reagent.

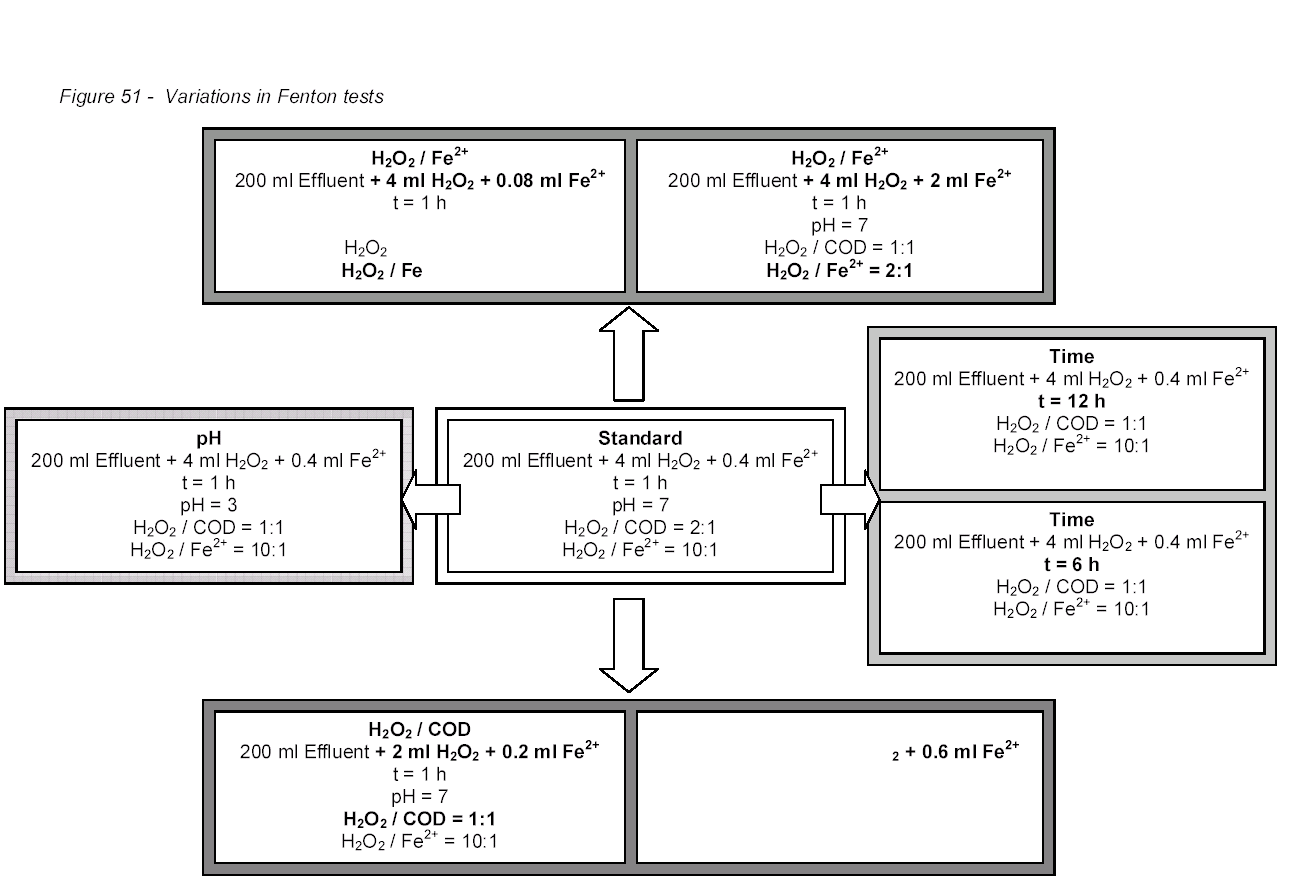

Two important factors affecting the rate of the Fenton's reaction are the peroxide dose and the Fe concentration. The peroxide dose is important for the degradation efficiency, whereas the Fe concentration is important for the reaction kinetics. Also varying the residence time or the pH value should have additional effects. The experimental program including the variation of standard parameters (pH, reaction time, H2O2/COD and H2O2/Fe ratio) is shown in Figure 51, S.57. For the Fenton tests aerobically pre-treated PM2 effluent was utilised.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 51 - Variations in Fenton tests

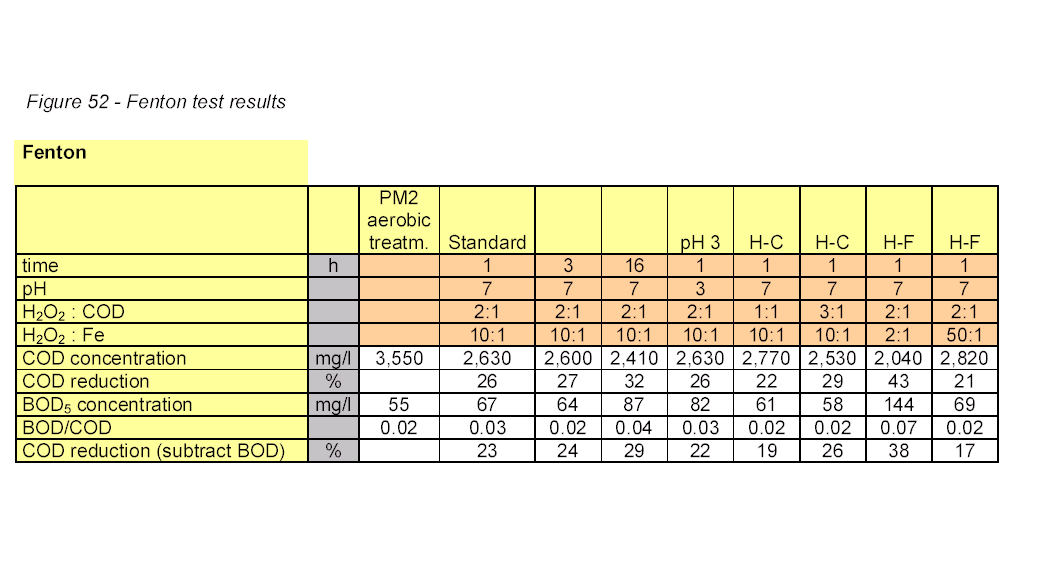

Generally, the COD could be reduced by about 25 % and a slight increase in the BOD was observed.
Only at a H2O2/Fe ratio of 2:1 a COD reduction from 3,500 mg COD/l to 2,040 mg/l proceeded. The BOD concentration rose from 55 mg/l up to 148 mg/l (170 %).
Hence, the Fenton's reaction oxidised part of the refractory COD and also increased the biodegradability of the PM2 effluent (Figure 52).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 52 - Fenton test results

Ozone

Use of ozone for the oxidative elimination of wastewater components has been known for a long time. Normally, ozone is used in drinking water treatment and the sterilization of air. Its effectiveness is highly depended on the pH and is essentially based on two following mechanisms.

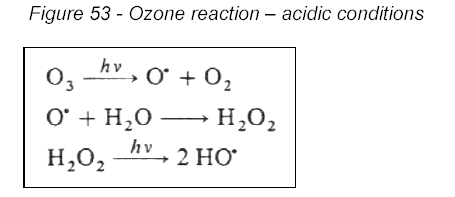

The so-called direct oxidation occurs under acidic conditions. The process is fairly slow, but the conversion can be accelerated if the energy necessary for radical formation is provided in the form of UV light.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 53 - Ozone reaction - acidic conditions

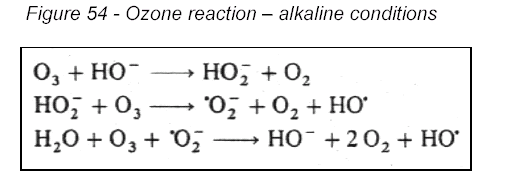

Alkaline oxidation also takes place via the intermediate formation of hydroxyl radicals (Ullmanns, 1988).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 54 - Ozone reaction - alkaline conditions

Similar to the Fenton's reaction described above the produced oxygen based free radicals which in turn can attack many substances like lignin and thus improve the biodegradability of the wastewater compounds. This would be attained by a partial oxidation of the ligninsulfonates and quite low ozone doses (Arcand, 1995).

Contradictory statements exist concerning the optimum ratios of O3/COD. Because of the specific amount of ozone varying dependent on the wastewater composition different samples were tested.
On the one hand, ozone treatment of the aerobically pre- treated wastewater should be a potential alternative to the previously tested lime precipitation method. On the other hand, the solution would be an additional ozone stage after lime precipitation.
Additionally, the combination of ozone and H2O2 was considered as an alternative because of the specifically lower costs for H2O2 as an oxidant.

Regarding the ozone treatment of wastewater, the ozone transfer from the gas to the liquid phase must be carefully selected. Ozone is generated electrochemically from oxygen and obtained a certain concentration in a gas flow, preferably oxygen.

Traditionally similar to oxygen, the ozone is by bubbles. Mostly "frits" (Arcand, 1995) or "injectors" (Schmidt, 2000) are in use. The alternative "bubble-free ozone transfer" is currently investigated but is not yet realised on technical scale application (Janknecht, 2000).

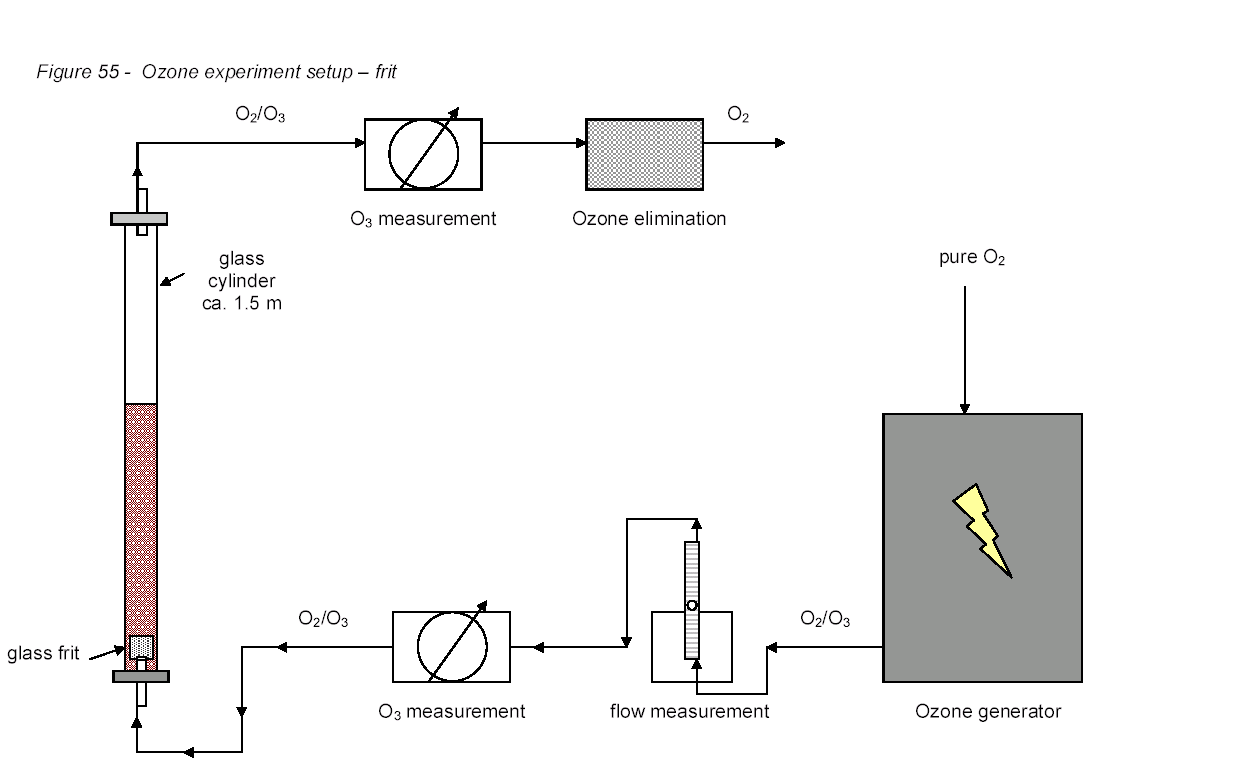

As a consequence, it was decided to use a frit for the ozone transfer. To improve the utilisation rate a long glass cylinder should extend the rising path the bubbles. The ozone concentration was measured before the gas mix entered the liquid and after passing the wastewater. The Ozone dissolved in the liquid was calculated from the concentration differences and the gas flow.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 55 - Ozone experiment setup - frit

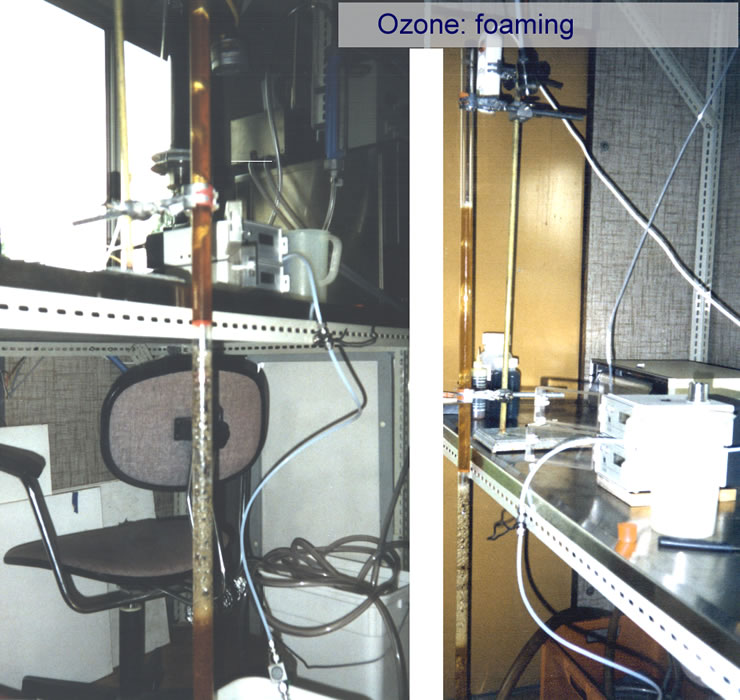

First tests with aerobically and lime treated wastewater showed that it would be impossible to continue the experiments in this way due to intensive foaming. Tests with an injector led to the same result. The reasons for such a reaction are surface-active substances, which are probably abundant.

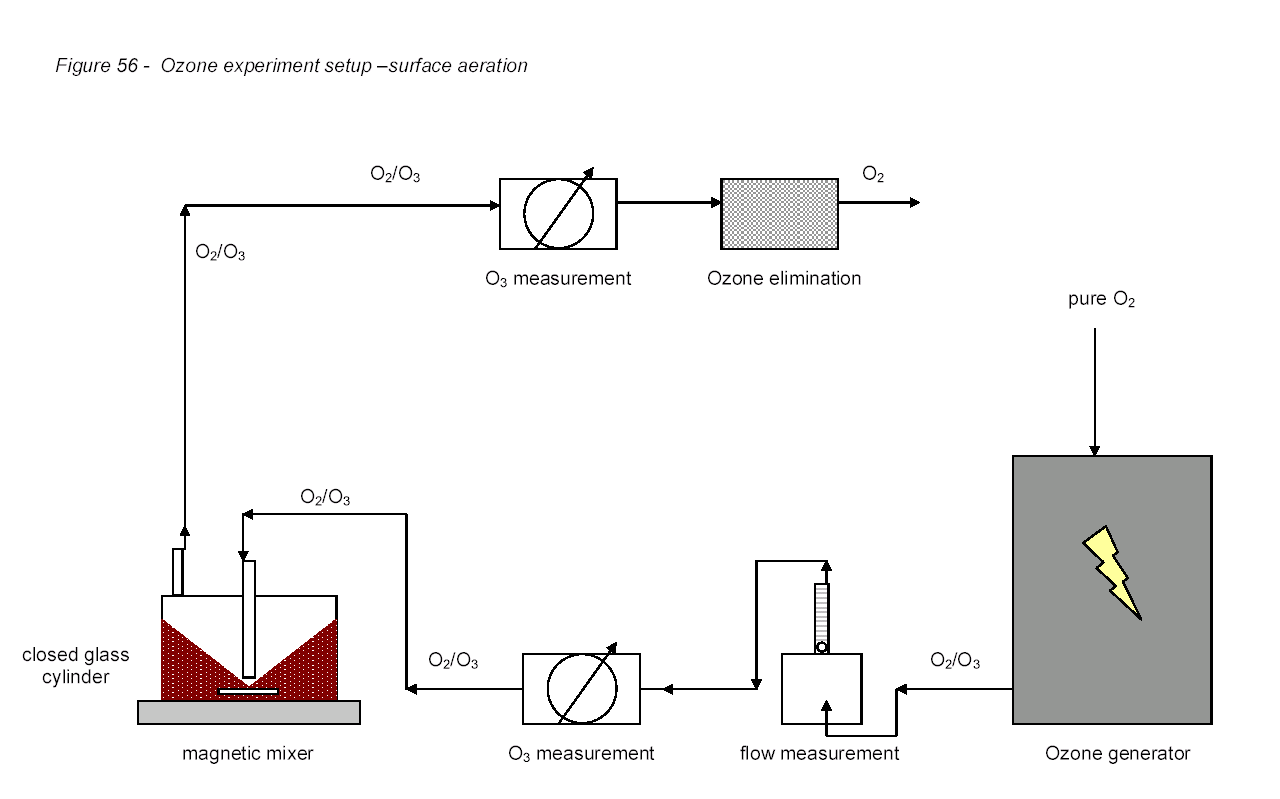

For this reason an alternative way of ozone transfer had to be applied. Generally,
pure oxygen aeration by surface aerators avoids foaming and allows a good transfer efficiency. It takes place in a sealed reactor. This simple method was emulated for the ozone treatment by using a little sealed glass bottle and a magnetic stirrer.

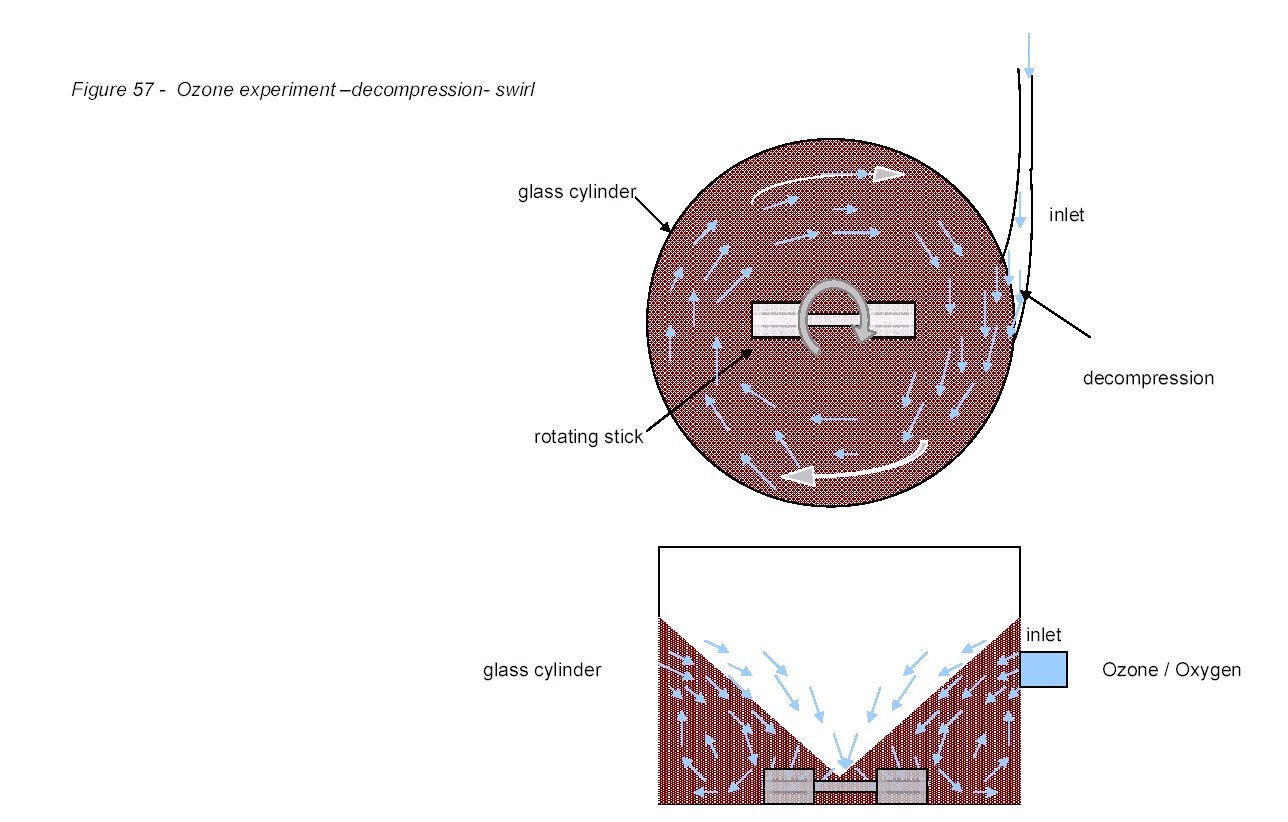

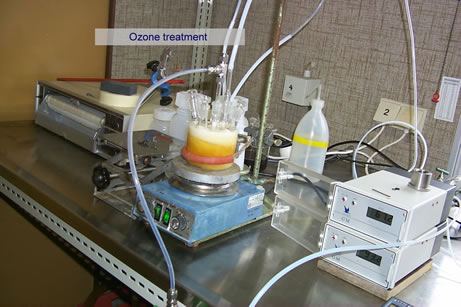

The Ozone/air mix was directly injected in the middle of the swirl. The suck raised by the swirl improved the gas transfer. The existing foam at the surface of the swirl was continuously mixed with the rest of the liquid.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 56 - Ozone experiment setup -surface aeration

A sidewise transfer of the gas due to the developing decompression could obtain an additional improvement of the transfer. But this kind of transfer was not tested.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 57 - Ozone experiment -decompression- swirl

The tests were conducted with a sample volume of 250 ml, a gas flow of 20 l/s and an ozone inlet concentration between 60 - 100 g/m3.
By varying the time of treatment an ozone transfer from 0.5 - 1.7 g O3/gCOD could be realised.

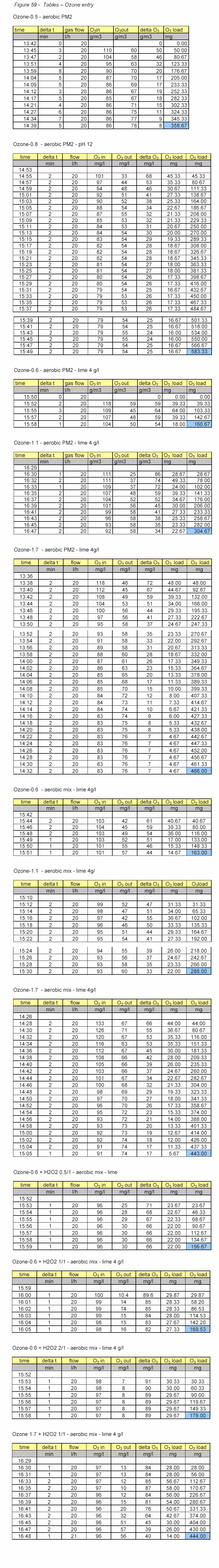

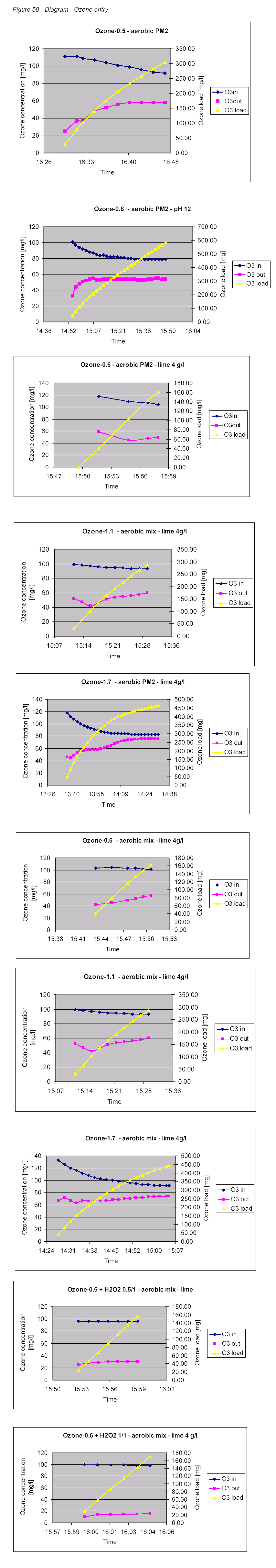

Figure 58 and Figure 59 show the progression of the ozone transfer into the wastewater with different compositions.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 58 - Diagram - Ozone entry
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 59 - Tables - Ozone entry


The ozone transfer gradient varied a lot. One reason for this might be the changing pH value over time. As described above the acidic ozone reaction needs more time and the specific transfer is lower than under alkaline conditions.
In the beginning of the test phase, the O3 consumed was quite high. In case of the aerobically pre-treated wastewater without pH regulation it was not possible to enter more than 0.5 g O3/gCOD. At the same time, the pH value decreased from pH 7 to less than pH 3.

In tests with lime pre-treated wastewater it was possible to reach a level of 1.7 g O3/gCOD. Therefore, the pH of one aerobically pre-treated sample was increased to pH 12 by addition of NaOH. This procedure changed the transfer behaviour completely so that a specific ozone consumption of 0.8 g O3/gCOD could be attained.
In case of the lime sample after ozone transfer of 80 mg the foaming tendency could not be observed anymore.

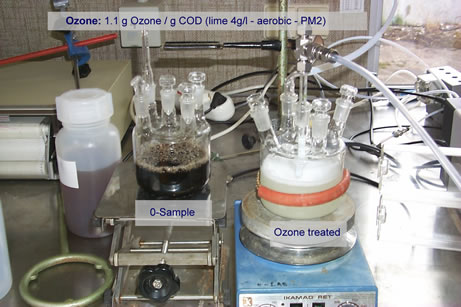

Generally, a beginning decolourisation was observed already after a short time.

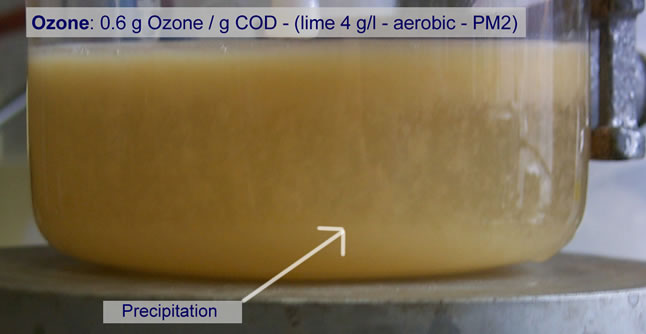

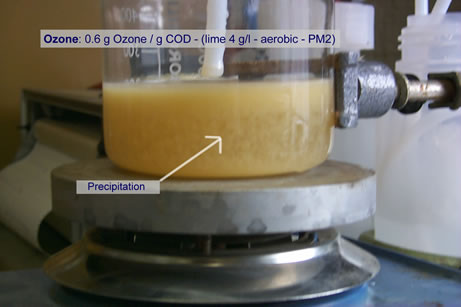

Another effect could be investigated after treating a lime probe with 0.6 g O3/gCOD - flocculation occurred. This effect is possibly due to the formation of calcium carbonate. After the settlement of the flocks the water was rather clear. The effect of flocculation disappeared by raising the ozone dosage.

The addition of H2O2 caused a high specific ozone transfer, but the test results showed that the higher ozone consumption did not increase the COD degradation.

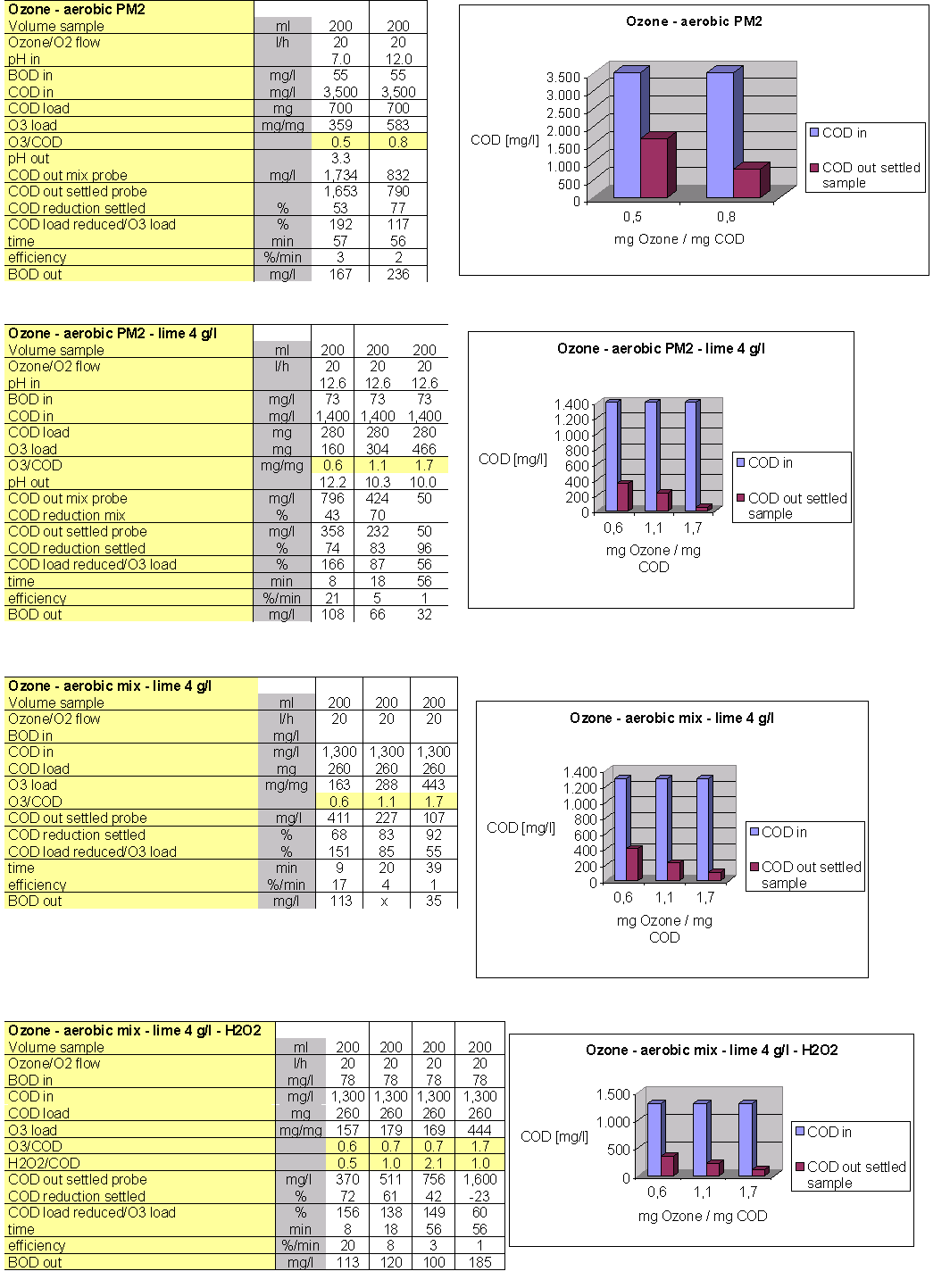

All results of the ozone treatment tests are shown in Figure 60.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 60 - Ozone test results

The highest COD elimination could be reached by an ozone dose of 460 g (1.7 g O3/g COD) in a lime pre-treated sample. The COD concentration decreased from 1,400 mg/l to 50 mg/l.
But also the 360 mg COD/l of the 0.6 g O3/g COD treated lime probe were respectable.
Taking the required time for ozone transfer into account, the lowest ozone transfer of 0.6 g O3/g COD has the highest efficiency in COD removal. Only a short (about 8 min) Ozone retention was necessary to reach the 0.6 O3/g COD (Figure 58). This was a strong contrast to the reaction time (about 56 min) of the 1.7 g O3/g COD. This is due to the fact that the correlation between the COD degraded and the time used for Ozone transfer is not linear.
Looking at the BOD values before and after the treatment with ozone the presumptions in regard to a partial oxidation were verified. This effect occurred only at the low dosed ozone samples. The BOD of the lime treated sample increased by an ozone transfer of 0.6 g O3/g COD from 73 mg/l to 108 mg/l (32 %).
This fact confirms the experience published that two-stage ozone -biological treatment with lower O3 loads is better than a one-stage ozone system applying higher loadings (Helble, 1999).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 100 - photo - oxidation -Ozone - experimental setup - frit - foaming
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 101 - photo - oxidation -Ozone - experimental setup - swirl
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 102 - photo - oxidation -Ozone - precipitation 1
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 103 - photo - oxidation -Ozone - precipitation 2
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 104 - photo - oxidation -Ozone - results
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 105 - photo - oxidation -Ozone - results - detail

4.2.3 Physical treatment
Physical treatment of wastewater has also a long tradition in wastewater treatment. The adsorption, mostly known in connection with activated carbon, is one way to separate the undesirable substances from water.

Adsorption
In adsorption, dissolved substances in wastewater are attracted to the adsorbents and adhere to a solid surface. The adsorption is attributable mainly to van der Waals forces, particularly dipole-dipole interaction, though coulombic forces also often play an important role (Fox, 1976).

Activated Carbon and Aluminium Oxide
Potential adsorbents for adsorptive wastewater purification include activated carbon, activated aluminium oxide (Al2O3) and diatomaceous earth.

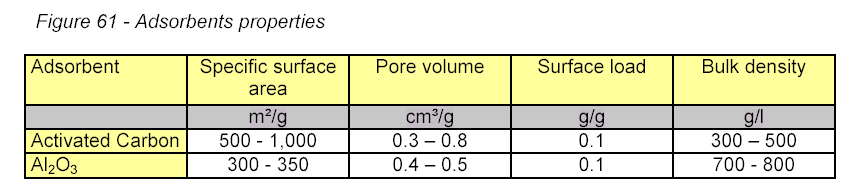

Characteristic properties of the adsorbents, such as specific surface area, pore volumes, and bulk densities are collected in Figure 61.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 61 - Adsorbents properties

The adsorption process can be conducted either batch wise or continuously. Principally, they can also be subdivided into mixing and filter percolation processes (Ullmanns, 1988).
Whereas the test with activated carbon and Al2O3 were conducted as filter process, the test with diatomaceous earth powder was conducted with the mixing method.

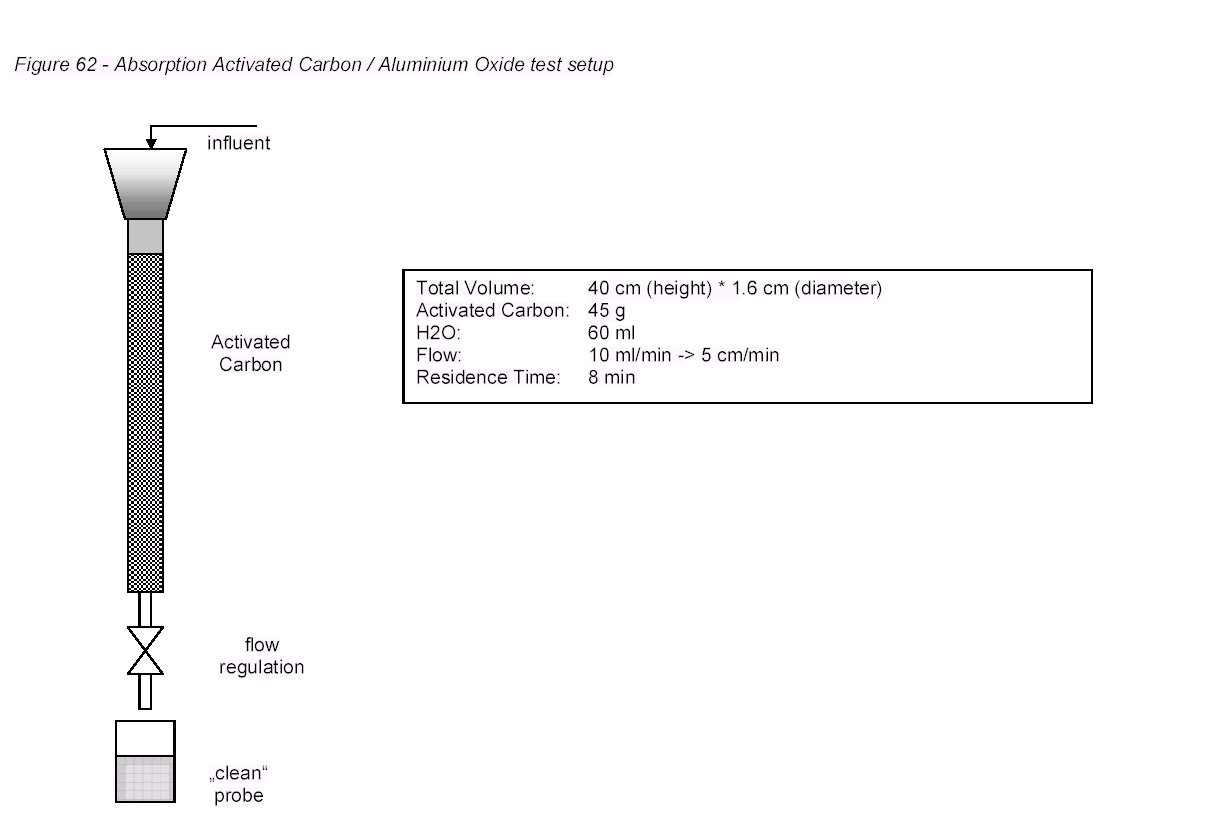

A principal test setup is shown in Figure 62.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 62 - Absorption Activated Carbon / Aluminium Oxide test setup

The activated carbon and the activated aluminium oxide were first mixed with 50 - 100 ml of distilled water because of filling the pores with water, before they could be poured into the glass cylinders. The flow was regulated at 10 ml/min.
The activated carbon tests were realized with the pure aerobically pre-treated PM2 wastewater, the aerobic/lime (8 g/l) and the aerobic/lime (6 g/l) pre-treatment samples of the PM2 effluent.

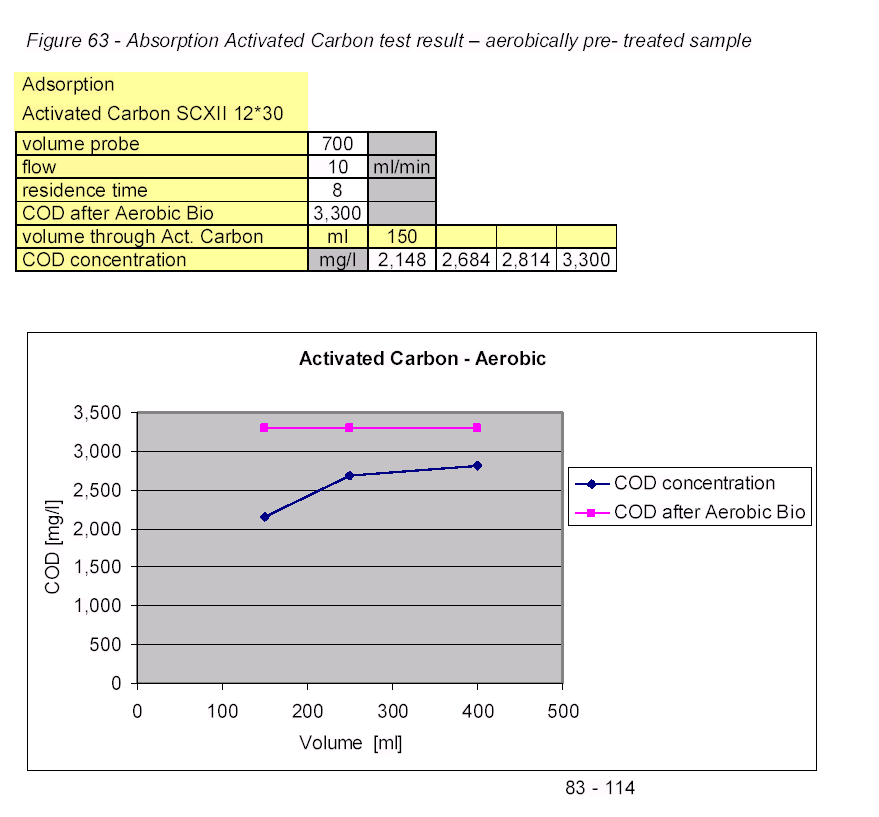

The experiment's results are shown in Figure 63 to Figure 65.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 63 - Absorption Activated Carbon test result - aerobically pre- treated sample

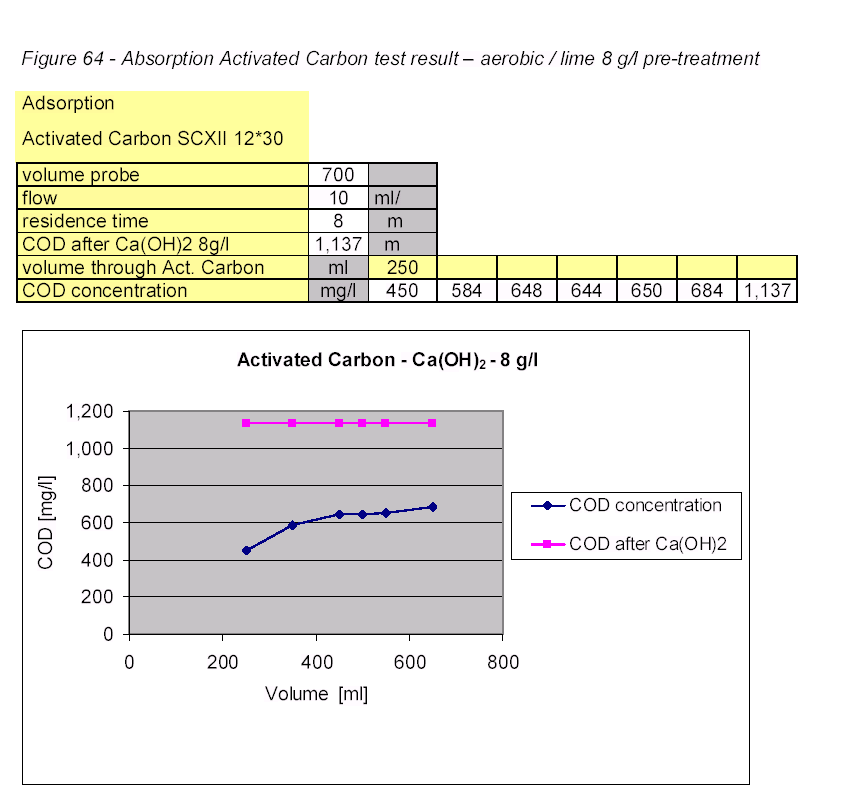

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 64 - Absorption Activated Carbon test result - aerobic / lime 8 g/l pre-treatment

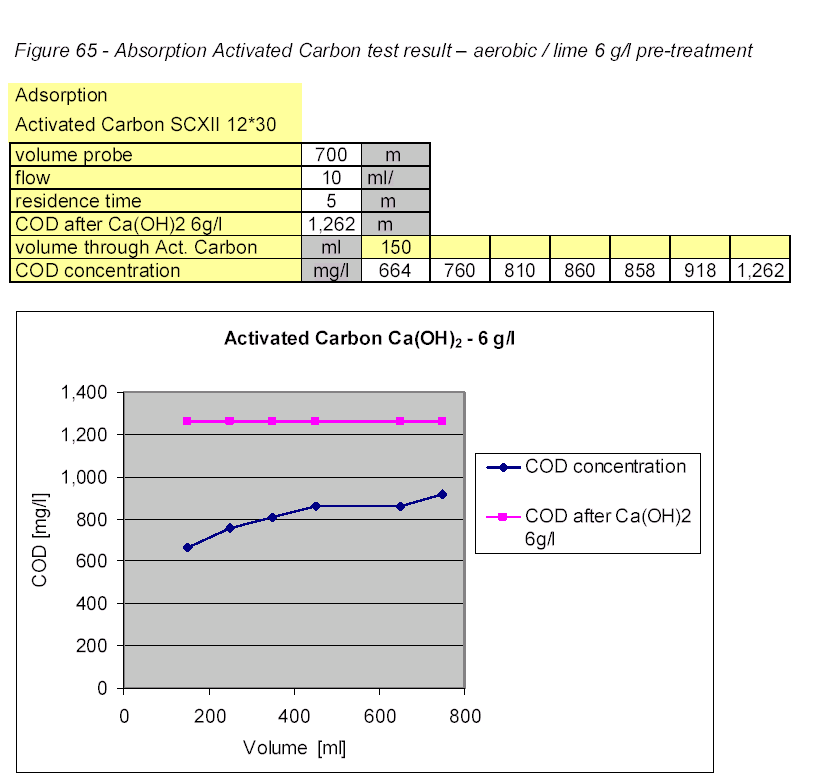

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 65 - Absorption Activated Carbon test result - aerobic / lime 6 g/l pre-treatment


The first 100 ml that flew through the cylinder were not usable for measurement due to the dilution with distilled water. Based on the assumption of a plug flow the catch liquid was separated every 50 ml.

Even if the breaking point of the activated carbon was not reached it was obvious that the target values could not be attained.
The highest COD elimination from 1,100 mg COD/l to 650 mg/l was observed with the aerobic/lime (8g/l) pre-treated PM2 sample. Also the aerobic/lime (6g/l) probe could be treated 28 %.
The COD concentration of the aerobically pre-treated wastewater amounted to 3,300 mg COD/l before and 2,800 mg COD/l after the activated carbon adsorption.

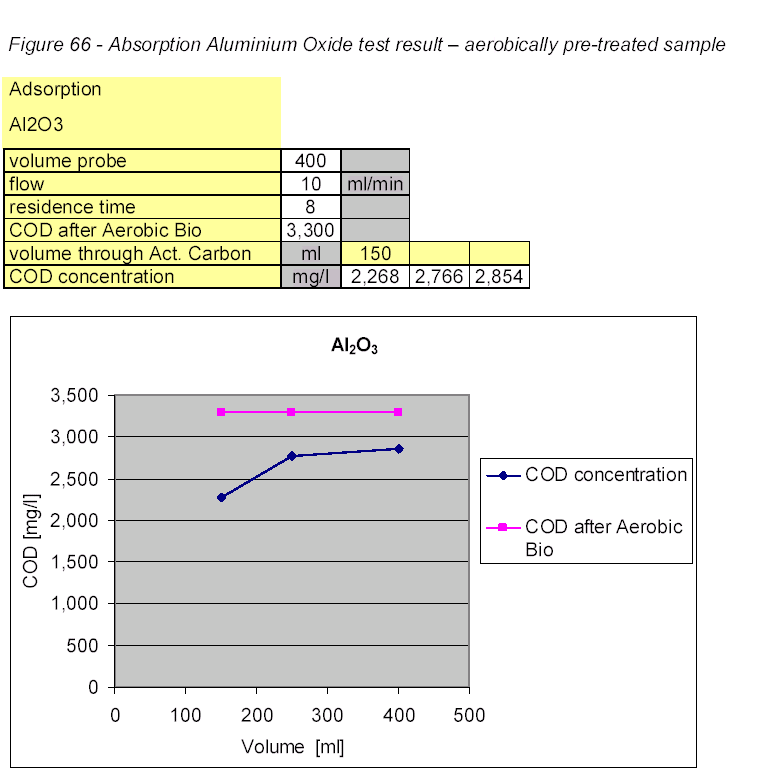

Further investigations with activated aluminium oxide were conducted exclusively with the aerobically pre- treated PM2 effluent. A COD reduction of 16 % could be achieved. Because of the insufficient performance compared to the activated carbon tests, aluminium oxide was excluded as a means of physical wastewater treatment.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 66 - Absorption Aluminium Oxide test result - aerobically pre-treated sample

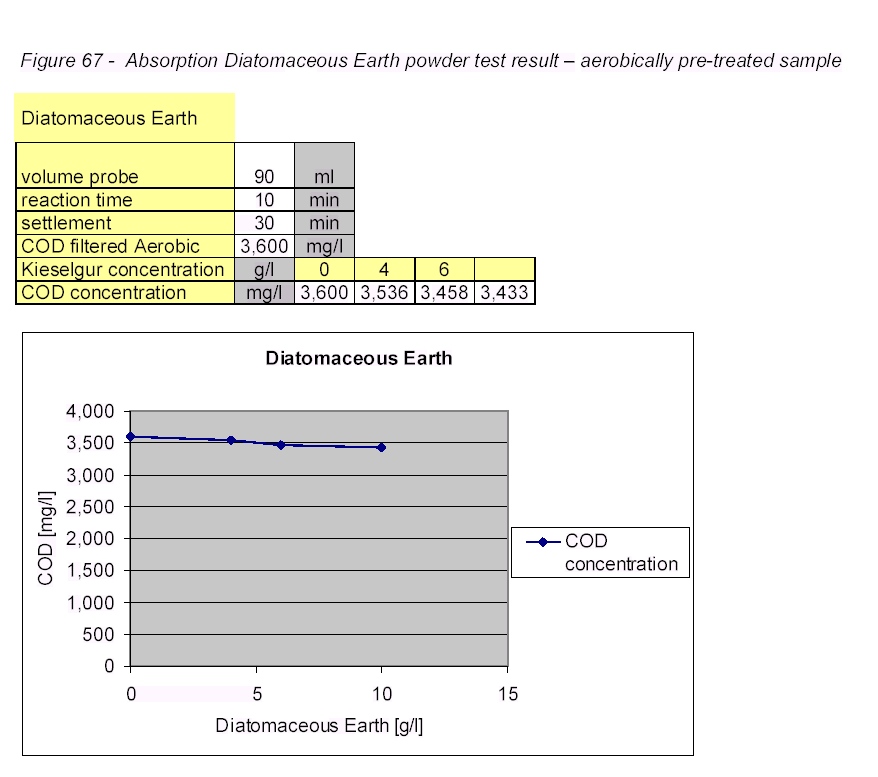

The testing procedure with diatomaceous earth powder and aerobically pre-treated wastewater was similar to the lime precipitation experiments. However, the COD reduction was quite poor: from 3,600 mg to 3,500 mg COD/l (3 %).

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 67 - Absorption Diatomaceous Earth powder test result - aerobically pre-treated sample

The different results obtained can be explained by the fact that every adsorbent can only adsorb a special kind of substance mostly depending on the nature of the surface (acid, alkaline or neutral).
Activated carbon has a neutral surface. Consequently, it reacts preferably with non-ionic neutral substances like AOX (Absorbable organic halogens).
The surface of activated aluminium oxide and diatomaceous earth powder is acidic; therefore they tend to adsorb alkaline substances.

auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 97 - photo - adsorption - experimental setup
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers)Figure 98 - photo - adsorption - Activated Carbon
auto close picture popup window ...(only IE5 ++) open picture in a new window... (no auto close - all browsers) Figure 99 - photo - adsorption - Diatomaceous Earth
